Detailed information on the Apollo Ultra 10
The Apollo Ultra 10 Road Bike pairs a hi-modulus carbon monocoque frame with box technology for rigidity and a BB86 press-fit system for improved drivetrain efficiency. Shimano 105 STI 22-speed shifters ensure precise gear changes, while an 11-speed KMC chain supports smooth, reliable performance on varied terrain.
Rate Apollo Ultra 10:
Apollo Ultra 10 Price
Not Available

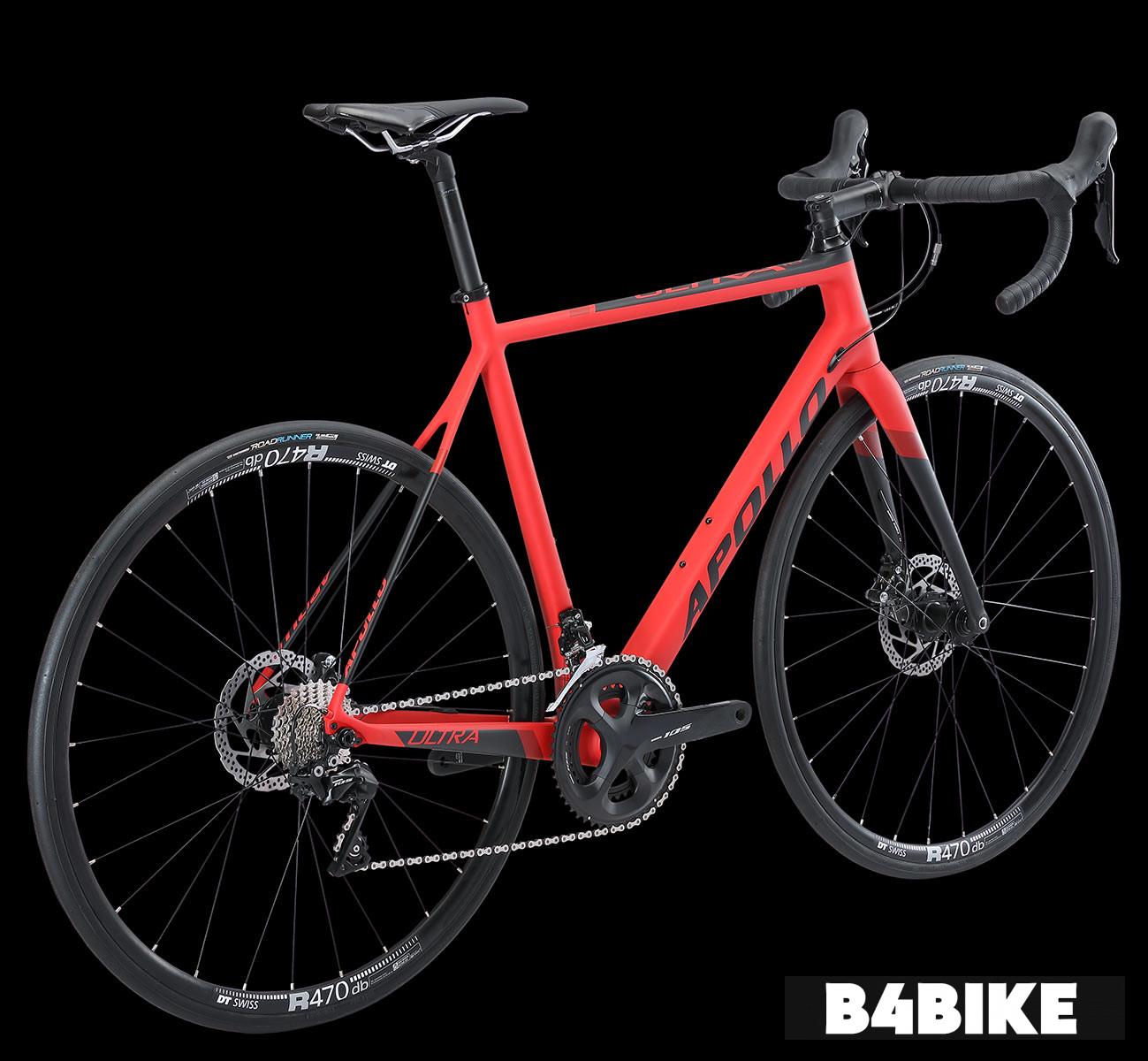

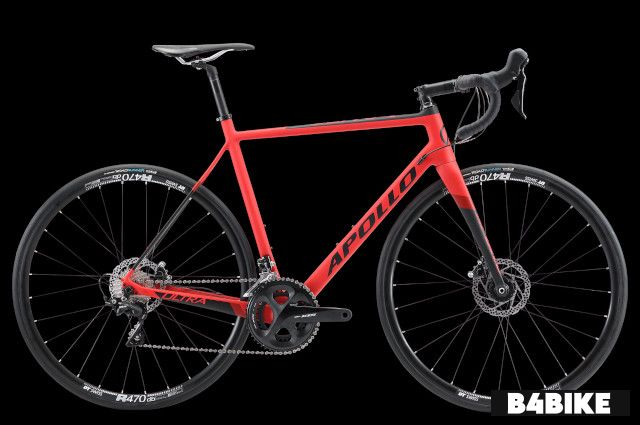

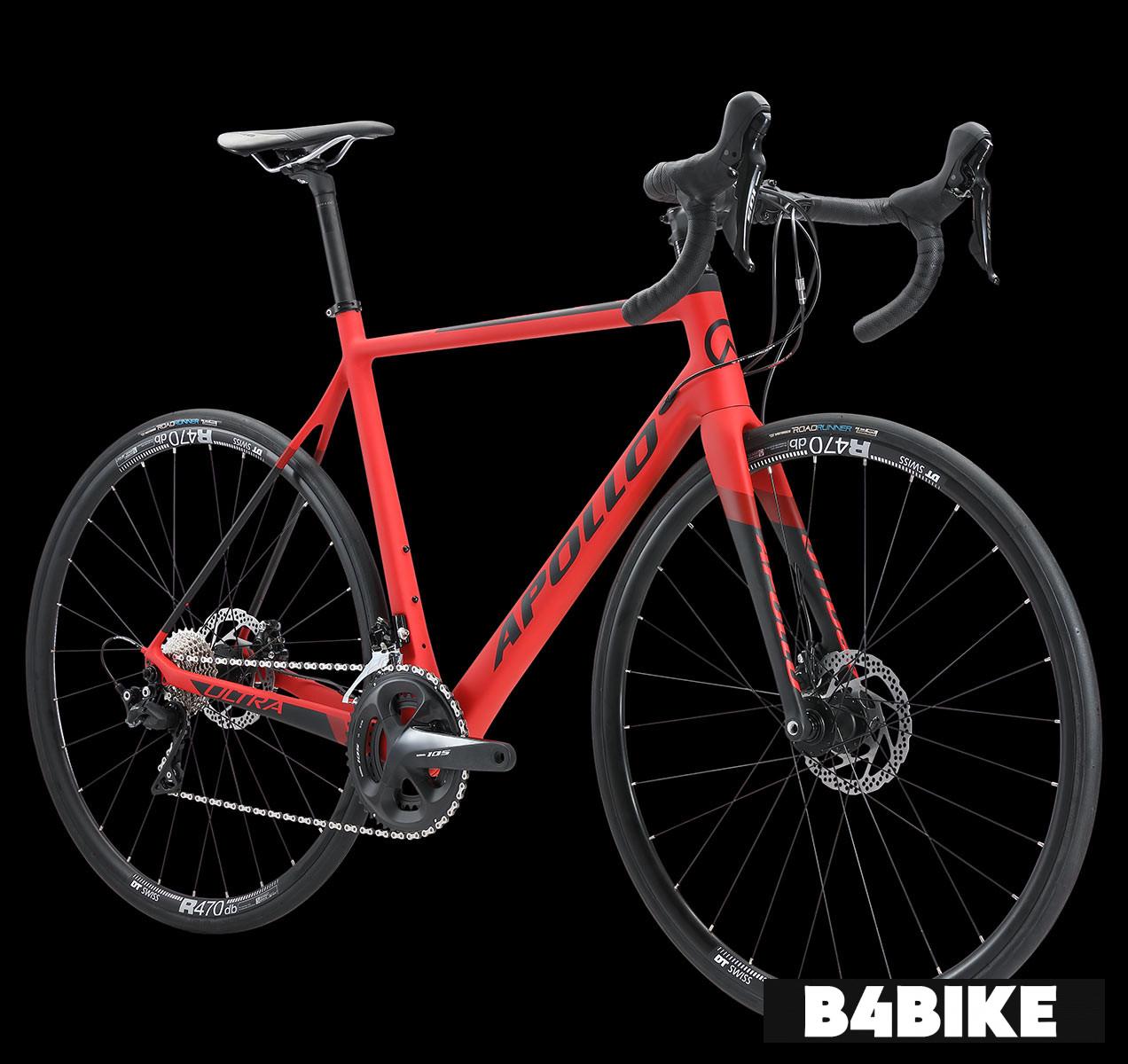

Images
Colours
Matte Red / Black
Specifications
| Vehicle Type | Road Bike |
| Stem | Apollo 1-1/8" 3D forged alloy 4 bolt stem. XS=90mm, S=100mm, M=110mm, L/ XL=120mm |
| Handlebar | Apollo butted alloy anatomic shallow drop 31.8mm alloy W: XS=40cm, S/M=42cm, L/XL=44cm |
| Fork | Full carbon straight blade flat mount disc fork with tapered 1-1/8 to 1-1/2" carbon steerer, fully integrated |
| Seatpost | Apollo 27.2mm 350mm long post, twin bolt, forged head, alloy seat clamp |
| Grip | Soft PU wrap with gel |
| Crankset | Shimano FC-R7000 compact 50 x 34T 2 piece crank, XS=170mm, S/M=172.5mm, L/XL=175mm |
| Chain | KMC 11 speed |
| Shifters | Shimano 105 STI 22 speed shifters |
| Saddle | Apollo road saddle |
| Headset | A-head integrated 1-1/2 to 1-1/8" sealed angular cartridge bearings with 15mm cone spacer |
| Derailleur : Front | Shimano 105 braze on |
| Derailleur : Rear | Shimano 105 11 speed |
| Cassette | Shimano 11 speed cassette 11-28T |
| Bottom Bracket | BB86 Pressfit |
| Brakes | |
|---|---|
| Front Brake | Shimano BR-R7020 105 hydraulic road disc brake with 160mm rotors |
| Rear Brake | Shimano BR-R7020 105 hydraulic road disc brake with 160mm rotors |
| Chassis and Suspension | |
|---|---|
| Frame | Hi-modulus carbon modular monocoque disc specific road frame. Box technology down tube with BB86 press fit system, slim seatstays, tapered head tube 1-1/8 to 1-1/2" |
| Tyres | |
|---|---|
| Wheels / Rim | 700c DT SWISS R-470-Disc rims, 32 hole F/V, alloy disc hubs and stainless spokes |
| Front Tyre | Veetire Roadrunner 700c x 28c, MPC - Multiple Purpose Compound |
| Rear Tyre | Veetire Roadrunner 700c x 28c, MPC - Multiple Purpose Compound |
