Detailed information on the MERIDA eSilex 400
The MERIDA eSilex 400 Electric Road Bike utilizes a KMC e10 chain paired with a Mahle ebikemotion X30 hub motor, delivering smooth pedal assistance. The integrated Mahle ix250 Wh battery provides a balanced range for extended rides, making it suited for long-distance touring.
Rate MERIDA eSilex 400:
MERIDA eSilex 400 Price
Not Available

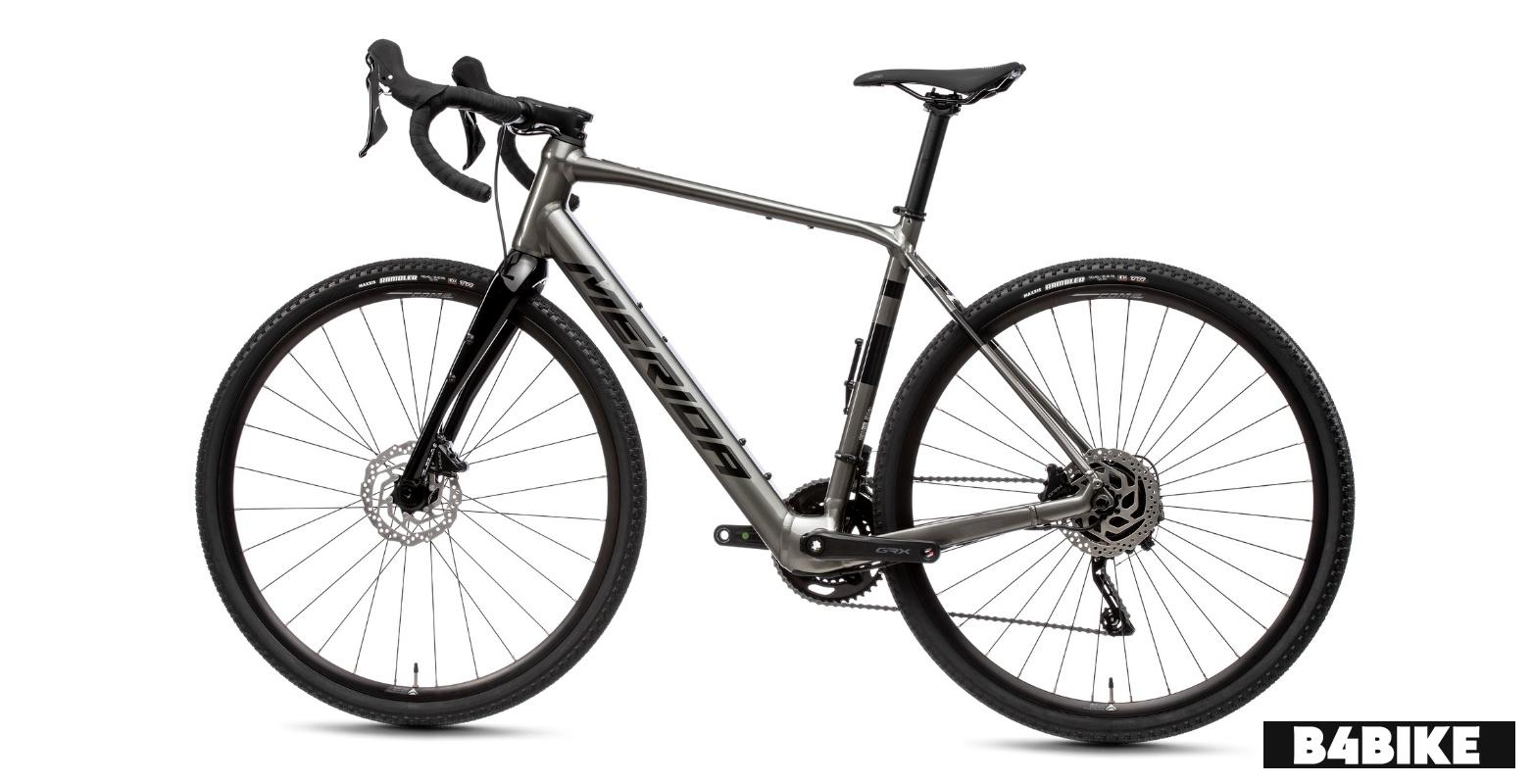

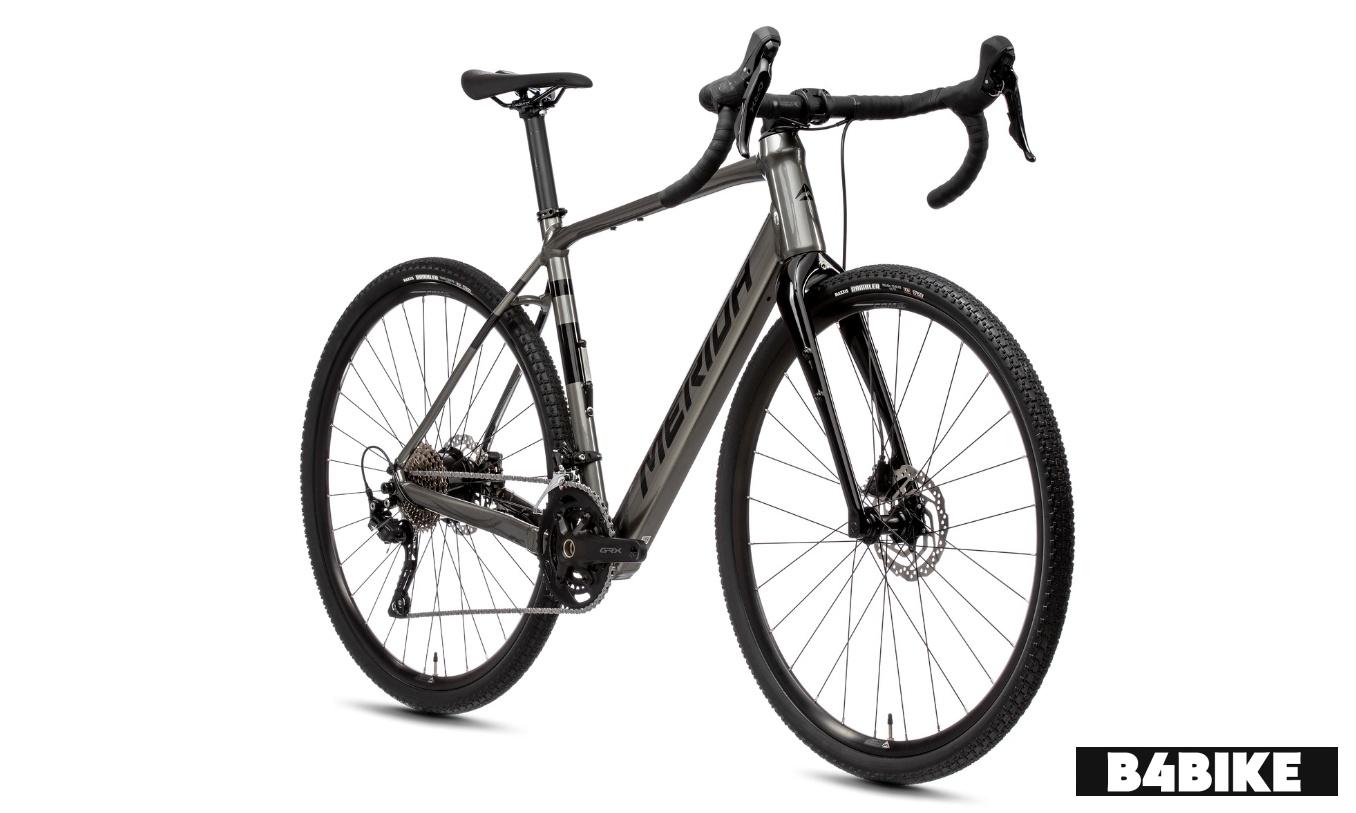

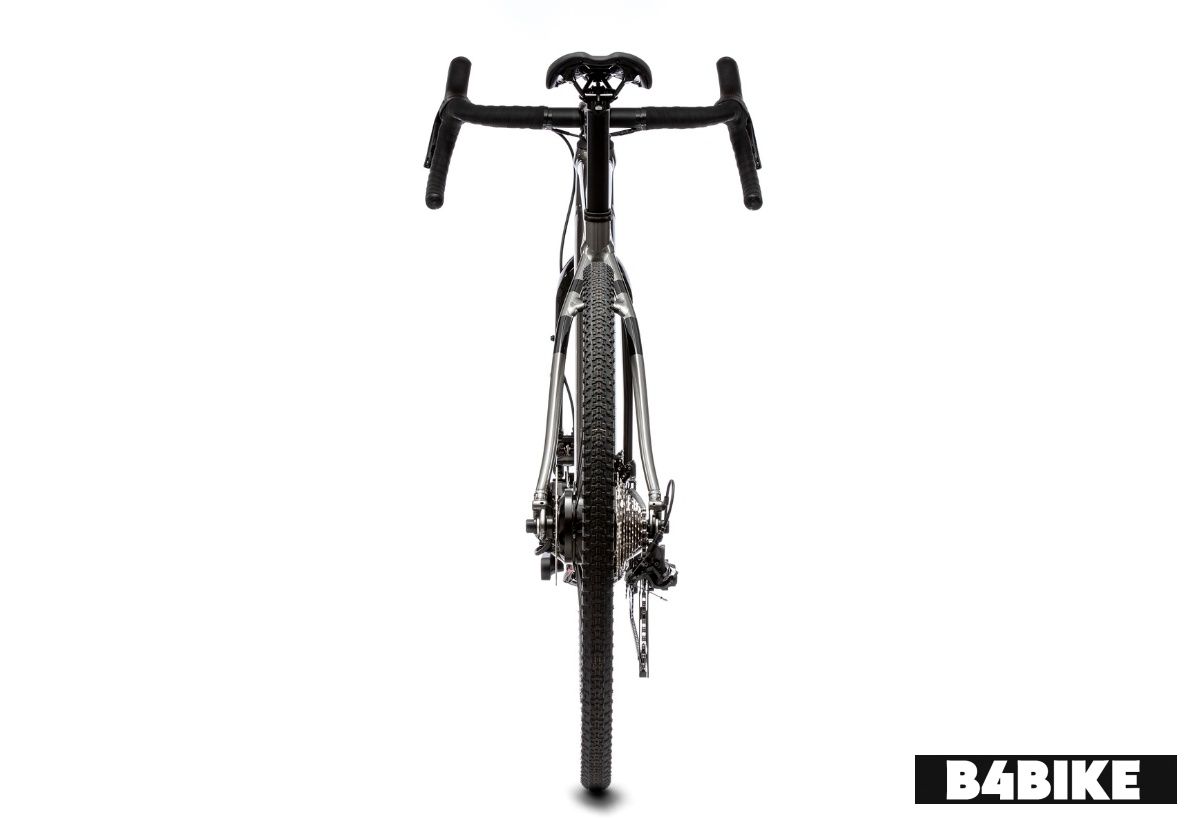

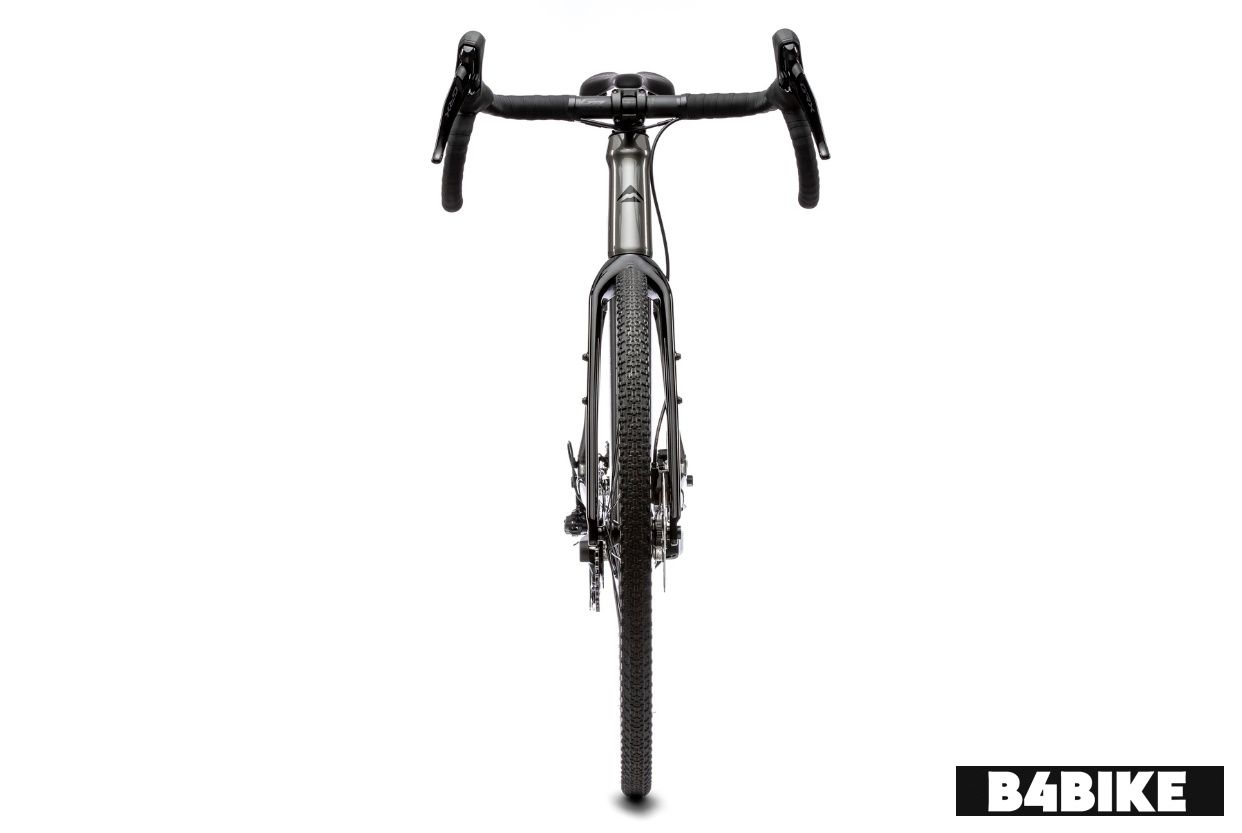

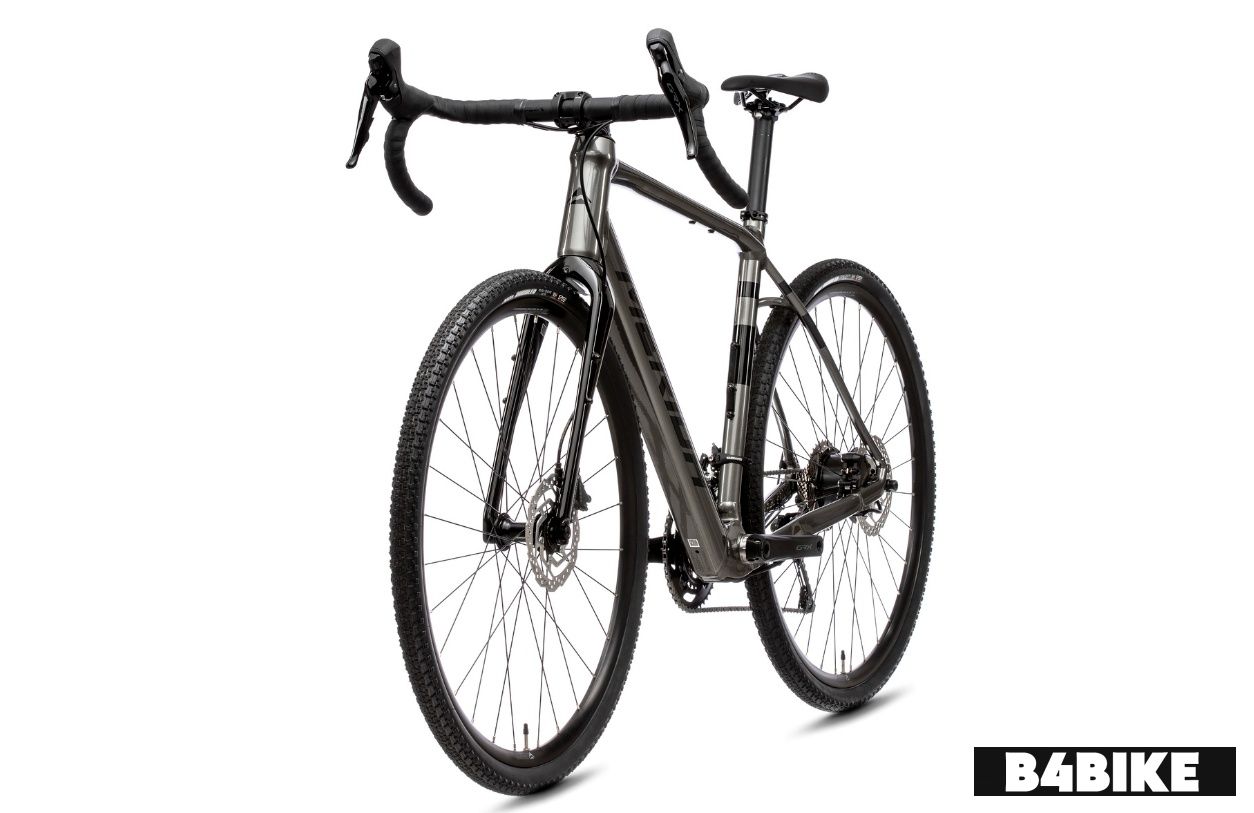

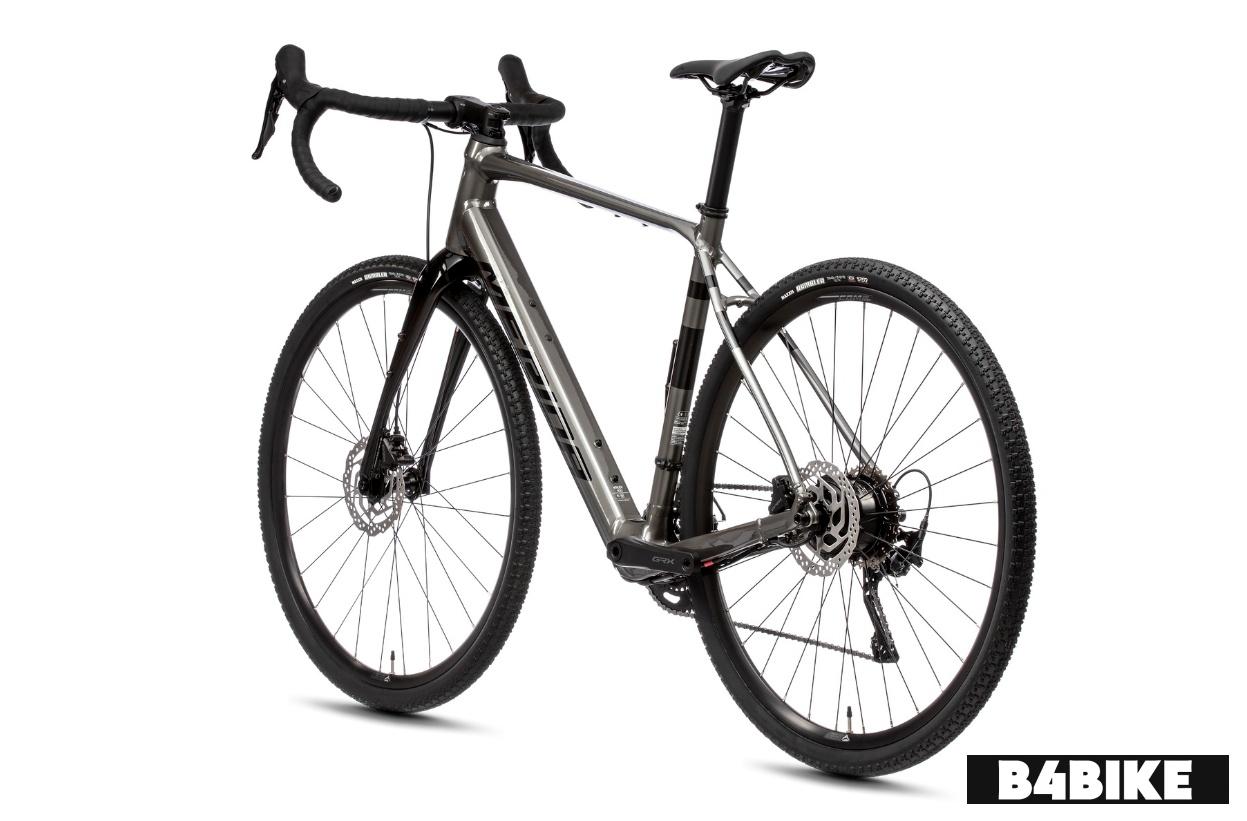

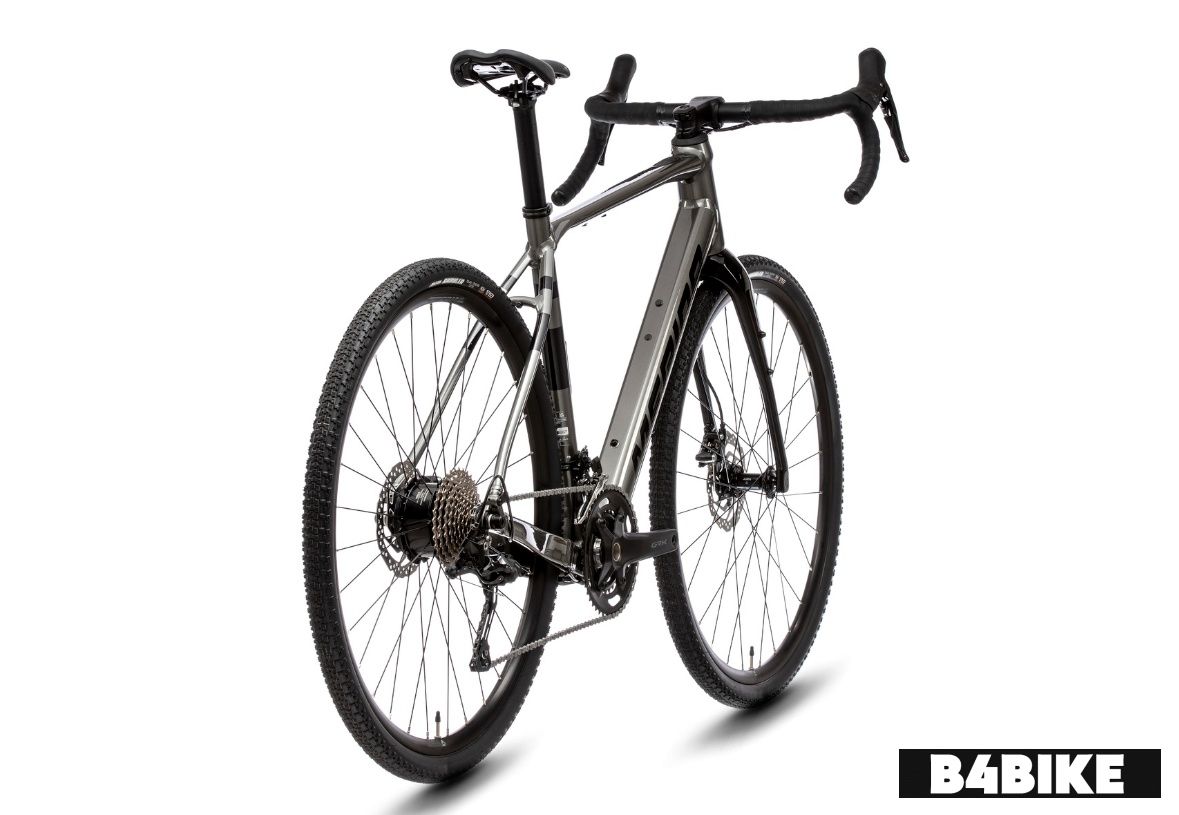

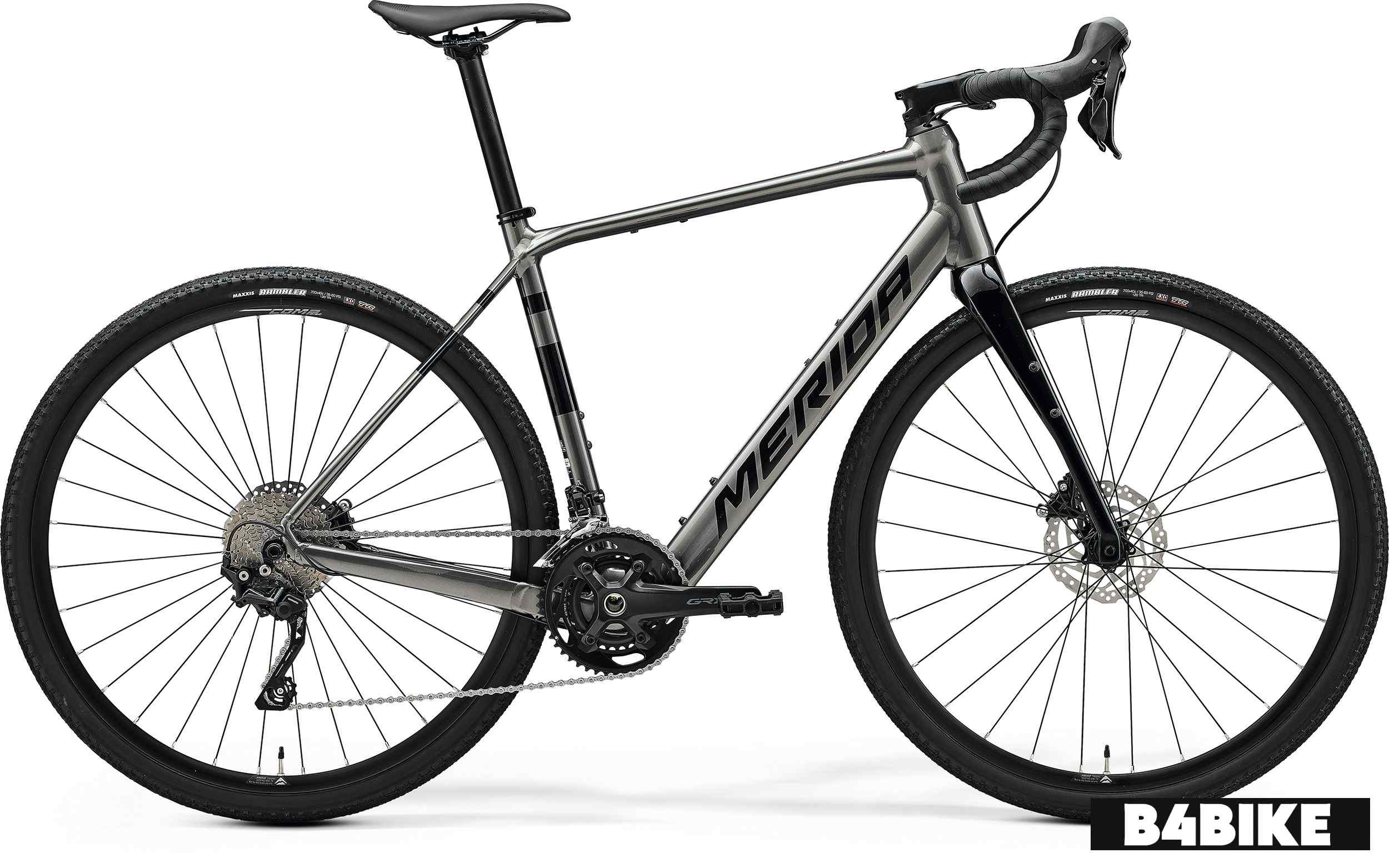

Images
Colours

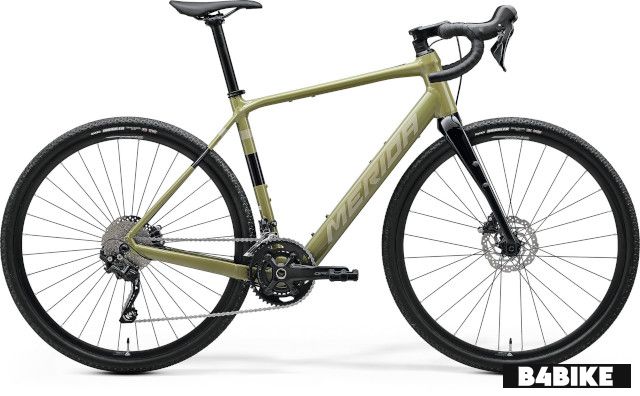

Low Key Green (Brown)
Gunmetal Grey (Black)
Specifications
| Vehicle Type | Road Bike |
| Fuel | Electric |
| Stem | Aluminium 31.8mm diameter -6οΎ° stem angle 80mm all sizes |
| Handlebar | Aluminium 400mm (XS-S) , 420mm (M) , 440mm (L/XL) |
| Fork | Merida silex CF2, carbon |
| Seatpost | Aluminium 30.9mm diameter 0mm setback |
| Grip | Merida Road Expert |
| Crankset | Shimano GRX600 46-30 teeth 170 mm-XS/S/SM/ML, 175 mm-L/XL |
| Pedals | VP VPE-891 |
| Chain | KMC e10 |
| Saddle | Merida Comp SL 28% recycled material V-mount |
| Headset | Merida 8158 |
| Derailleur : Front | Shimano GRX400 |
| Derailleur : Rear | Shimano GRX400 |
| Hub : Front | Shimano HB-TC500 100x12mm width 28 spoke holes Centerlock |
| Hub : Rear | Shimano HB-TC500 |
| Spoke | Black stainless |
| Cassette | Shimano CS-HG50 11-36 teeth, 10 speed |
| Bottom Bracket | Shimano RS500 BSA |
| Motor Details |
|---|
| Mahle ebikemotion X30 hub motor |
| Electricals | |
|---|---|
| Battery | Mahle ix250 Wh |
| Brakes | |
|---|---|
| Front Brake | Shimano GRX400, 2 Piston Rotor: Shimano RT10/Shimano RT26, 160mm |
| Rear Brake | Shimano GRX400, 2 Piston Rotor: Shimano RT10/Shimano RT26, 160mm |
| Chassis and Suspension | |
|---|---|
| Frame | eSpeeder Lite II |
| Tyres | |
|---|---|
| Wheels / Rim | Aluminium Rim, 17mm inner width, 22mm height |
| Front Tyre | Maxxis Rambler 700Cx40, fold, EXO |
| Rear Tyre | Maxxis Rambler 700Cx40, fold, EXO |
| Dimensions | |
|---|---|
| Weight | 13 kg |
