Detailed information on the MERIDA Scultura 10K
The MERIDA Scultura 10K Road Bike is built on a carbon frame and uses Sram Red AXS components. The carbon construction ensures a lightweight design, while the Sram Red AXS group set provides precise and responsive shifting.
Rate MERIDA Scultura 10K:
MERIDA Scultura 10K Price
Not Available
Images
Colours

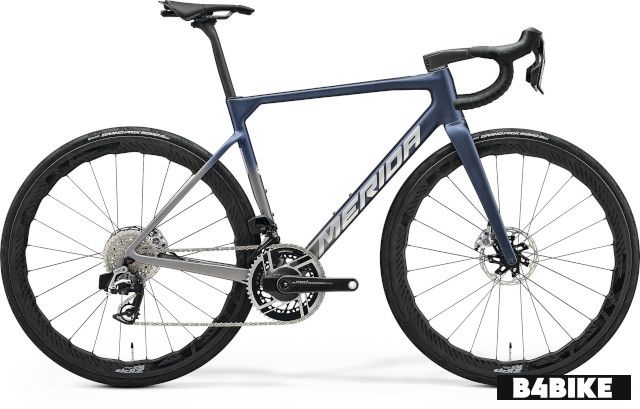

Silk Blue/Grey

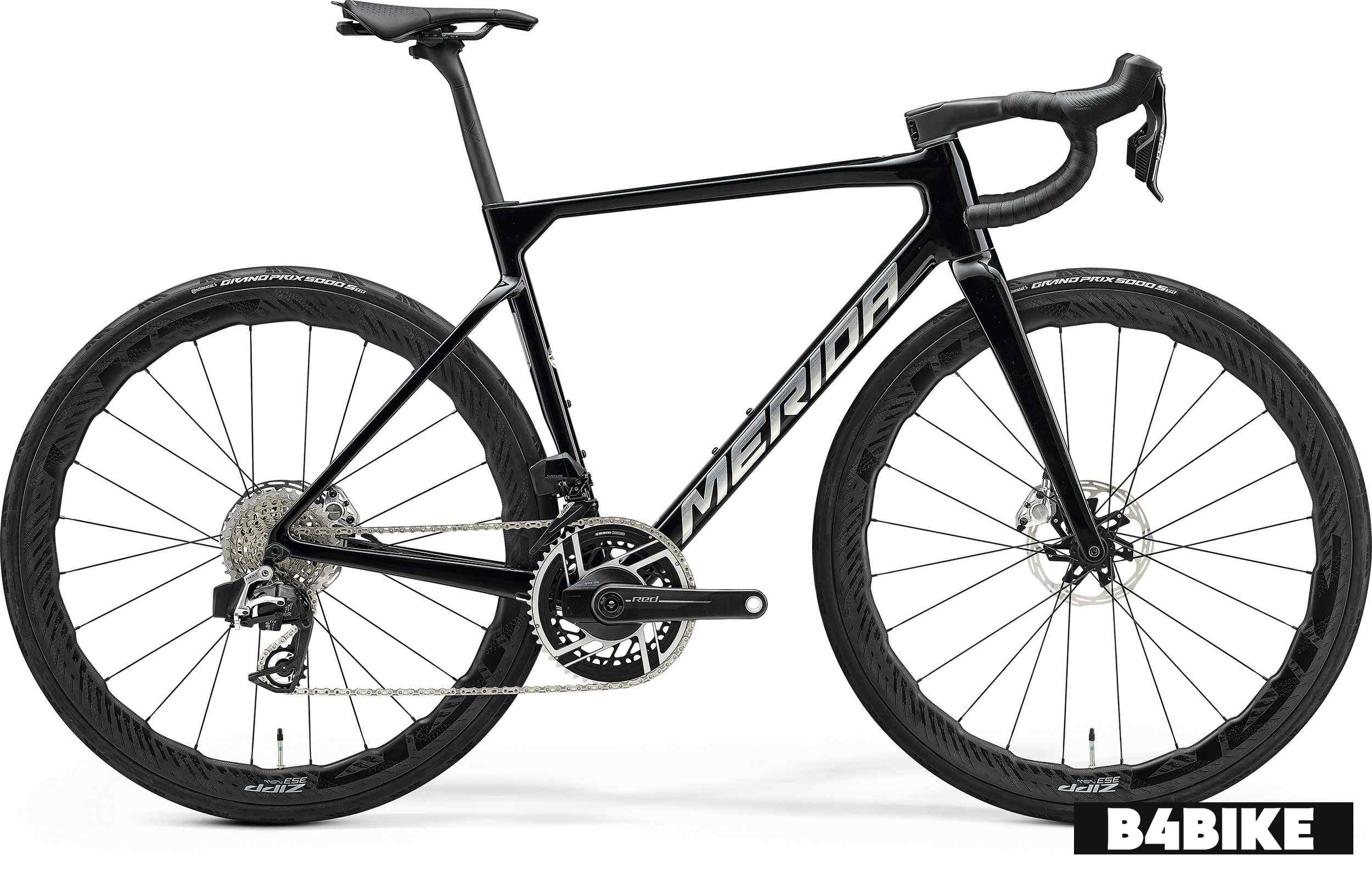

Metallic Black
Specifications
| Vehicle Type | Road Bike |
| Stem | Carbon 90 mm-3XS/XXS/XS, 100 mm-S, 110 mm-M/L, 120 mm-XL incl. MERIDA SMART MOUNT |
| Handlebar | Carbon 380mm (XXS-XS-S) 400mm (M-L-XL) |
| Fork | Carbon |
| Seatpost | Carbon, 27.2mm diameter 15mm setback S-Flex |
| Grip | Merida road Expert |
| Crankset | Sram Red AXS 50-37 teeth Power Meter 165 mm-3XS-XXS, 170 mm-XS, 172.5 mm-S/M/L, 175 mm-XL |
| Chain | Sram Red D1 12S |
| Shifters | Sram Red AXS |
| Saddle | V-mount adapter incl. MERIDA minitool |
| Headset | VP-MRBHB (OP-203 neck) |
| Derailleur : Front | Sram Red AXS |
| Derailleur : Rear | Sram Red AXS |
| Hub : Front | 12*100mm width |
| Hub : Rear | 12*142mm width |
| Cassette | Sram XG 1290E1 10-36 teeth 12 speed |
| Bottom Bracket | Sram Pressfit 86.5 |
| Brakes | |
|---|---|
| Front Brake | 160mm, Hydraulic disc |
| Rear Brake | 160mm, Hydraulic disc |
| Brake Lever | Sram Red AXS |
| Chassis and Suspension | |
|---|---|
| Frame | Carbon Size: 3XS, XXS, XS, S, M, L, XL |
| Tyres | |
|---|---|
| Wheels / Rim | Zipp WH-353-NSW Tubeless 25mm inner width, centerlock Sram xdr, Carbon |
| Front Tyre | 700x28C, fold, tubeless ready |
| Rear Tyre | 700x28C, fold, tubeless ready |
