Detailed information on the Trek Checkpoint SL 5 AXS Gen 3
The Trek Checkpoint SL 5 AXS Gen 3 employs a SRAM Apex 12-speed chain for precise and reliable gear transitions. Its carbon frame contributes to weight savings while enhancing overall comfort on extended rides. The bike’s geometry supports long-distance performance and adaptability across varied terrains. Tubeless-ready wheels allow for lower tire pressures, improving traction and reducing the risk of punctures. Internal cable routing maintains a clean appearance and minimizes exposure to external elements.
Rate Trek Checkpoint SL 5 AXS Gen 3:
Trek Checkpoint SL 5 AXS Gen 3 Price
$
3199
[United States]
The price could differ based on factors such as color, accessories and other features.
| Country, City | Price |
|---|---|
| United States | $ 3199 |
Colours

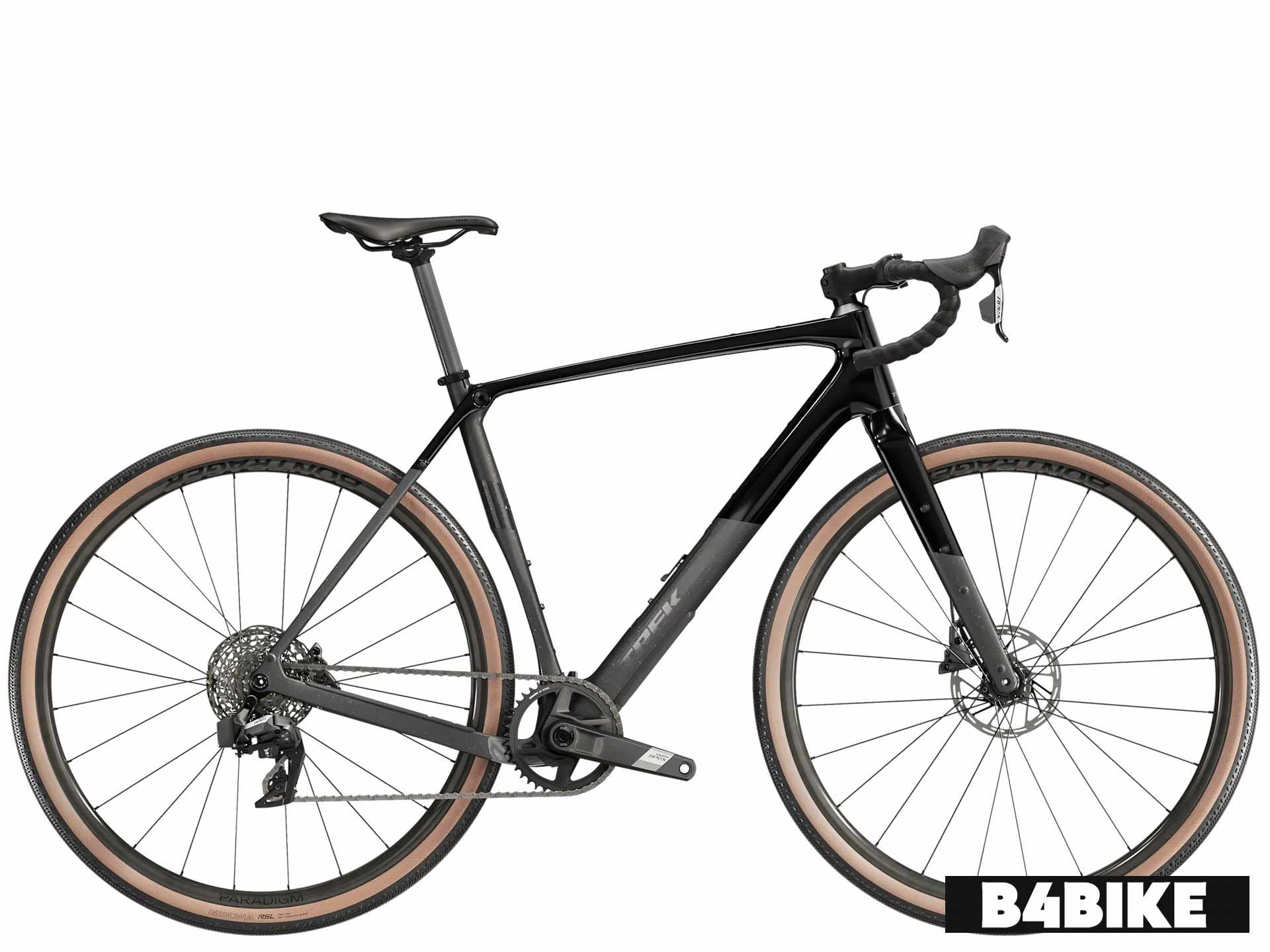

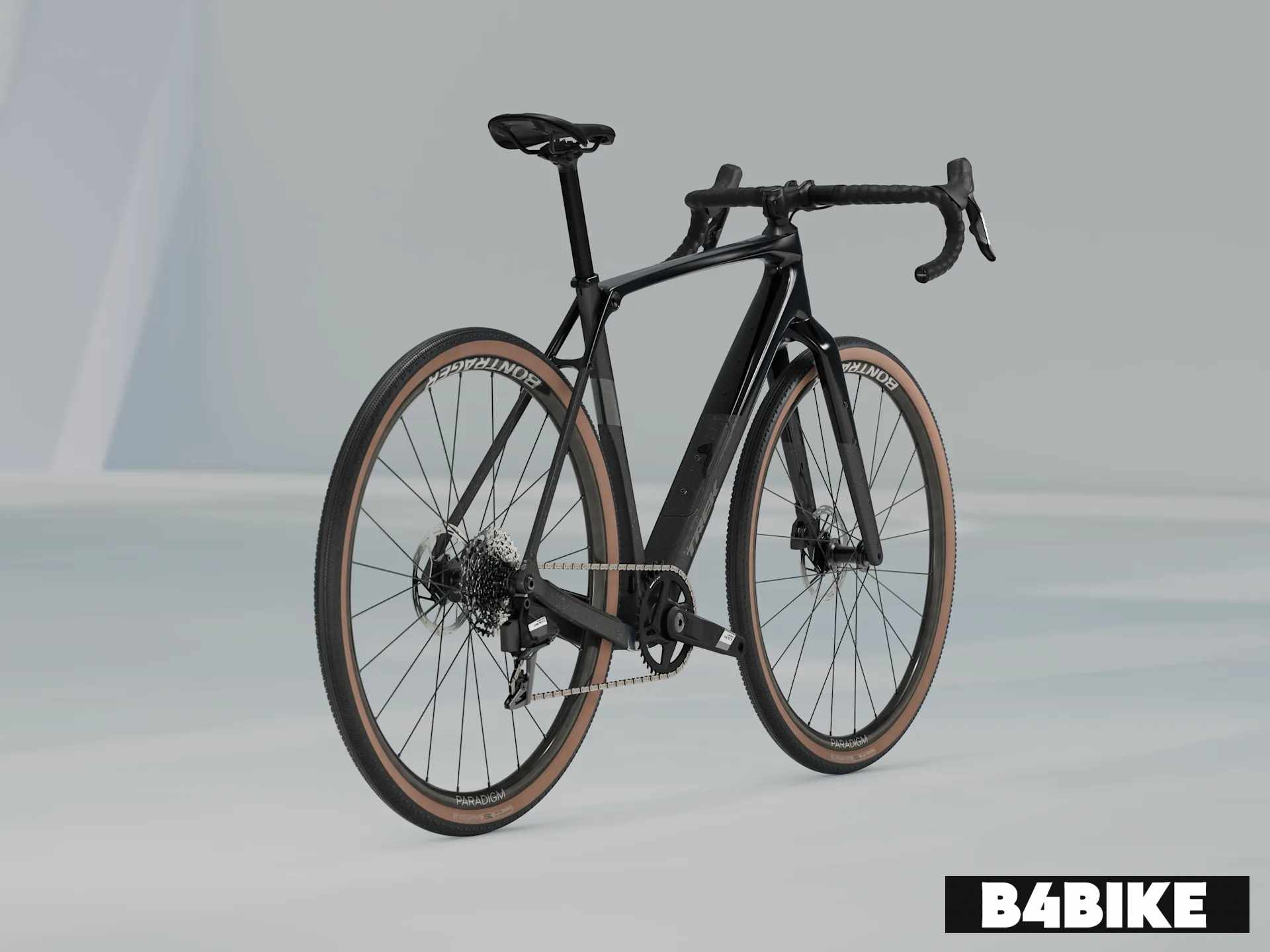

Trek Black/Matte Carbon Smoke

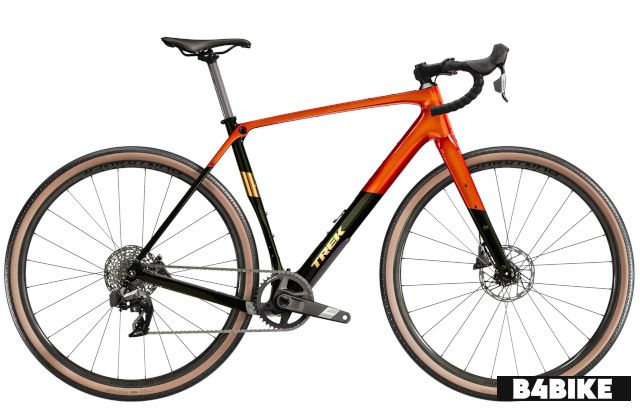

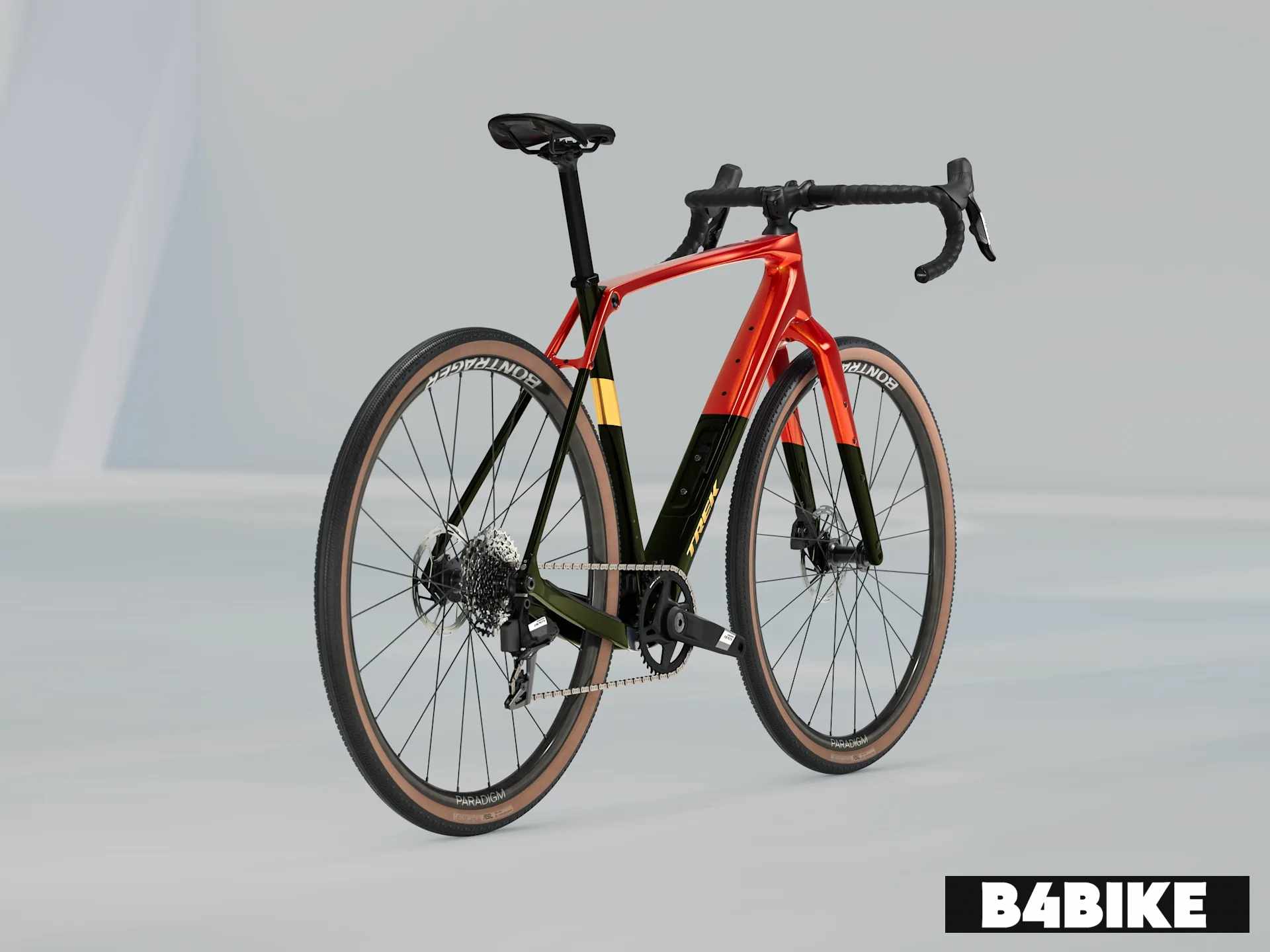

Lava/Black Olive
Specifications
| Vehicle Type | Road Bike |
| Load Carrying Capacity | 125 kg |
| Stem | Bontrager Elite, 31.8mm, Blendr compatible, 7 degree, 60mm length(Size: XS) Bontrager Elite, 31.8mm, Blendr compatible, 7 degree, 70mm length(Size: S) Bontrager Elite, 31.8mm, Blendr compatible, 7 degree, 80mm length(Size: M, ML) Bontrager Elite, 31.8mm, Blendr compatible, 7 degree, 90mm length(Size: L) Bontrager Elite, 31.8mm, Blendr compatible, 7 degree, 100mm length(Size: XL) |

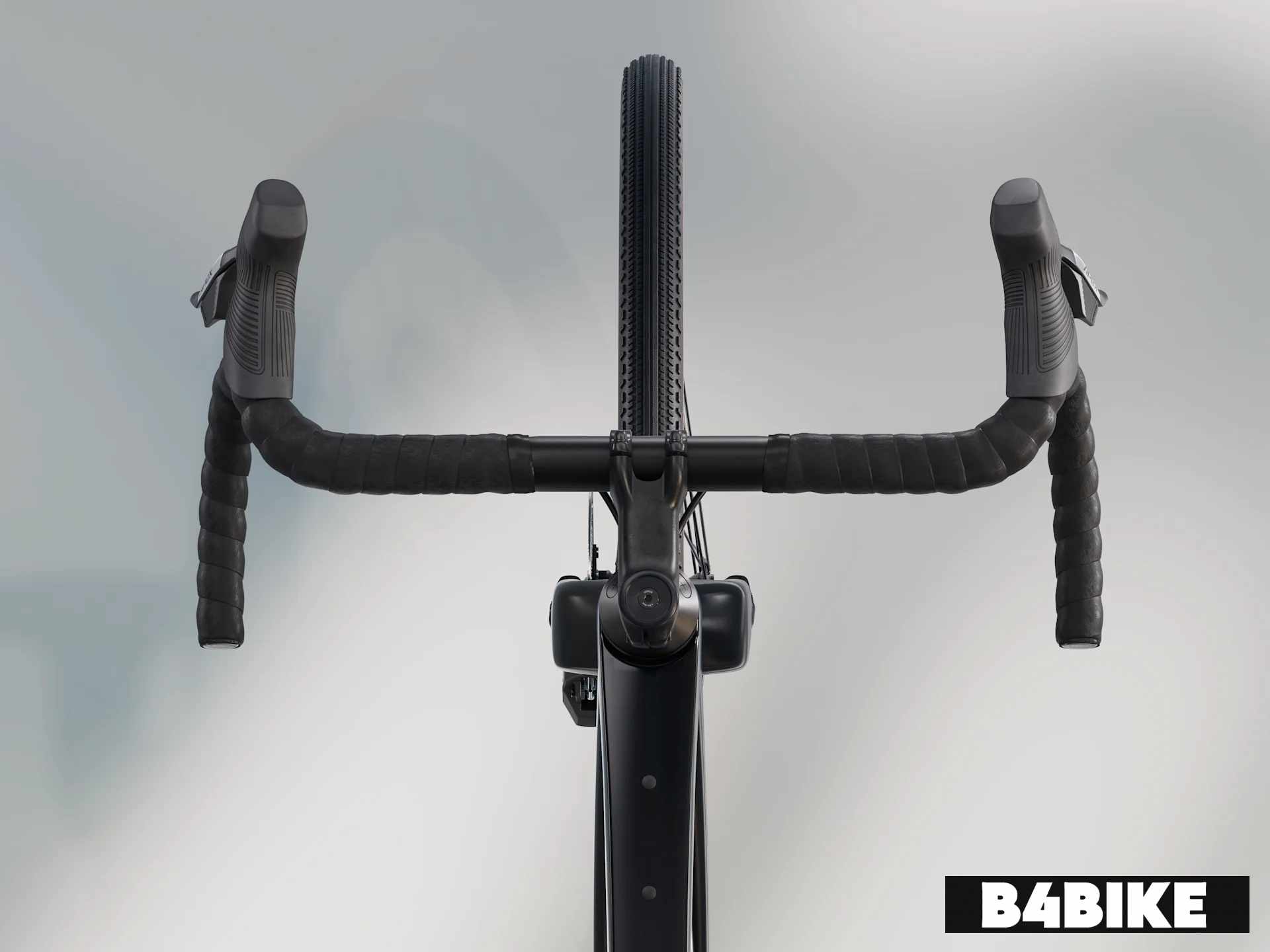

| Handlebar | Bontrager Elite Gravel, alloy, 40cm width(Size: XS) Bontrager Elite Gravel, alloy, 42cm width(Size: S, M) Bontrager Elite Gravel, alloy, 44cm width(Size: ML, L) Bontrager Elite Gravel, alloy, 46cm width(Size: XL) |

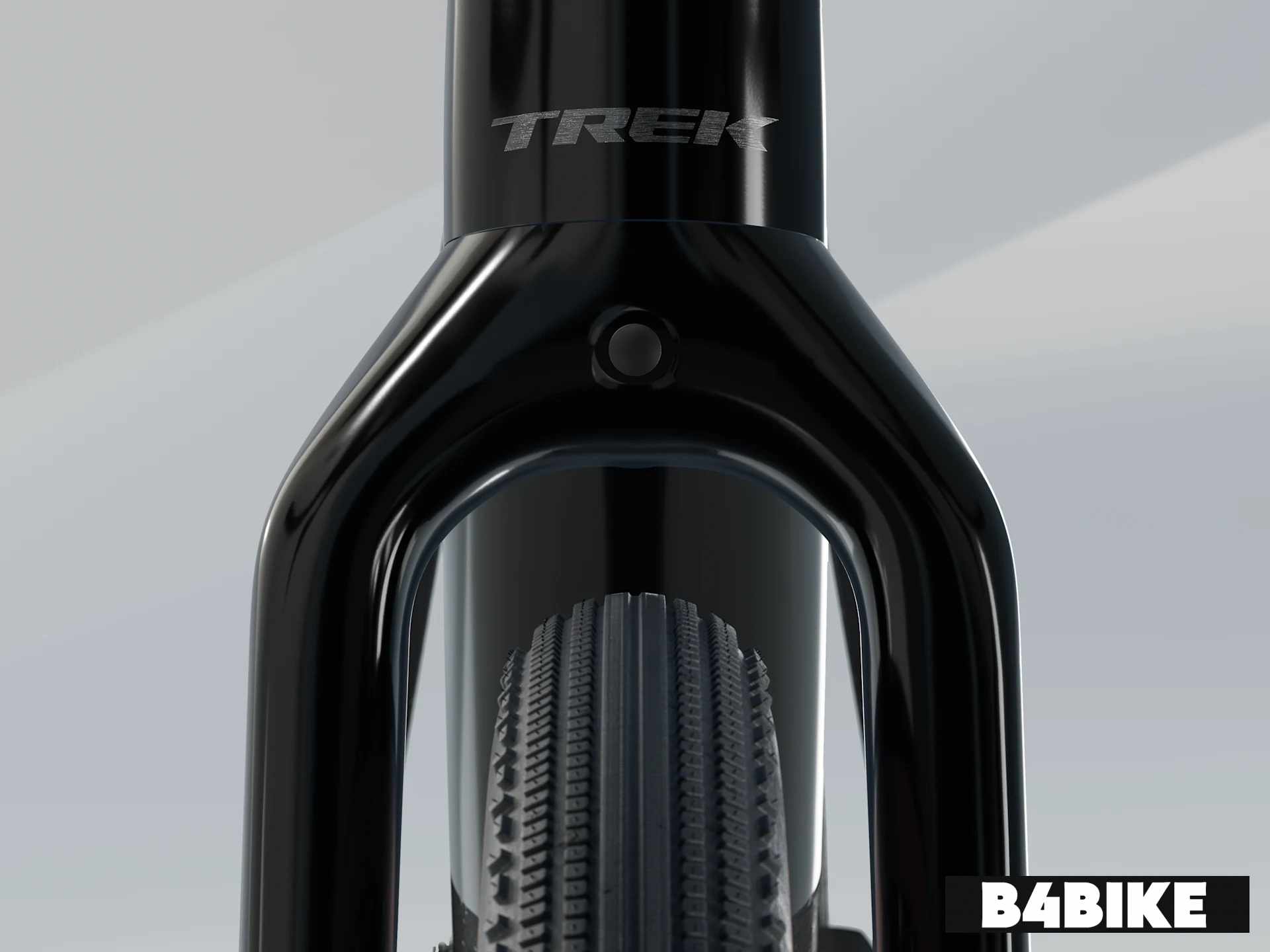

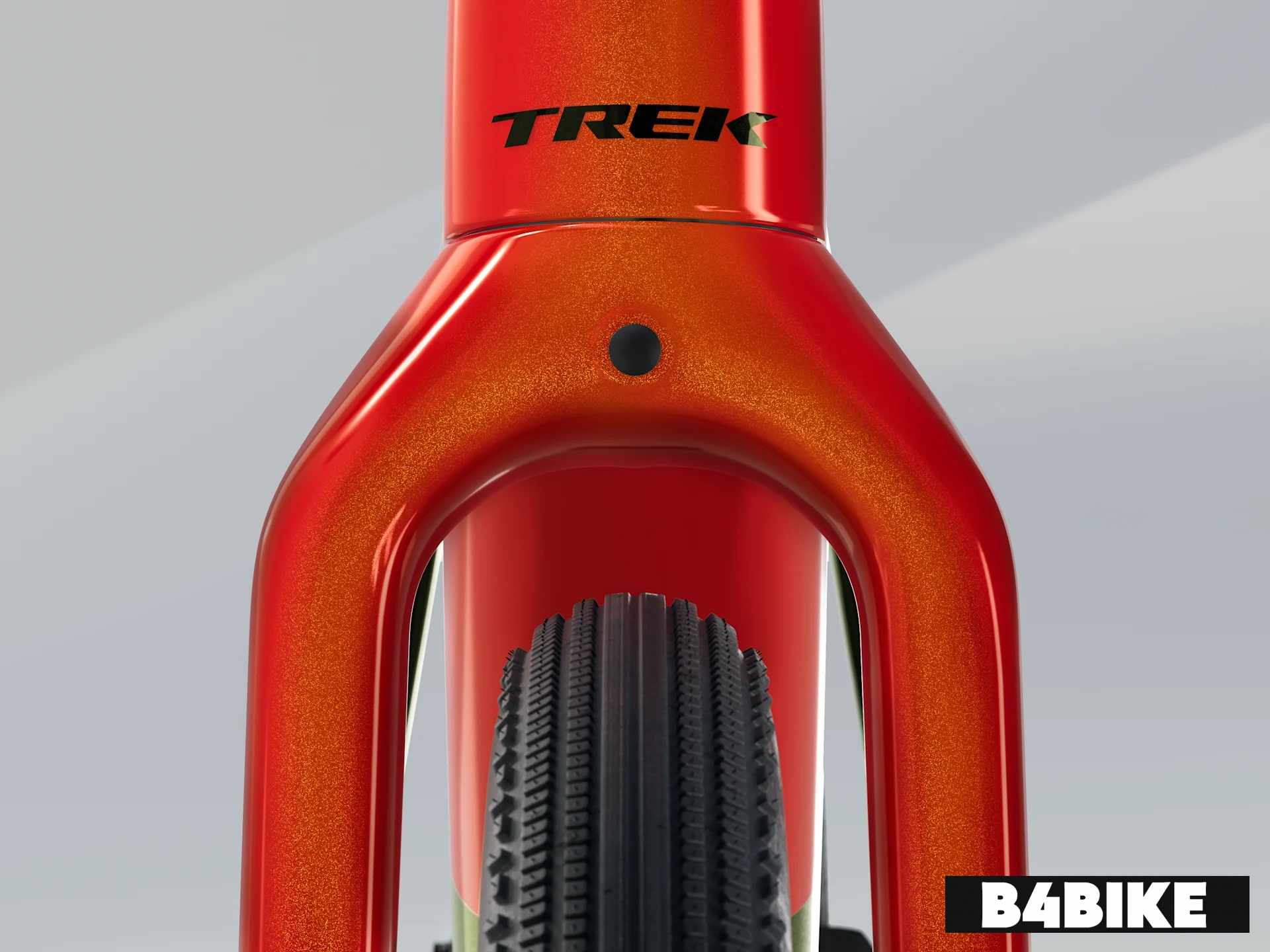

| Fork | Checkpoint full carbon, tapered carbon steerer, fender mounts, triple rack mounts, flat mount disc, 12x100mm chamfered thru axle |
| Seatpost | Bontrager carbon, 27.2mm, 8mm offset, 330mm length |
| Grip | Bontrager Supertack Perf tape |

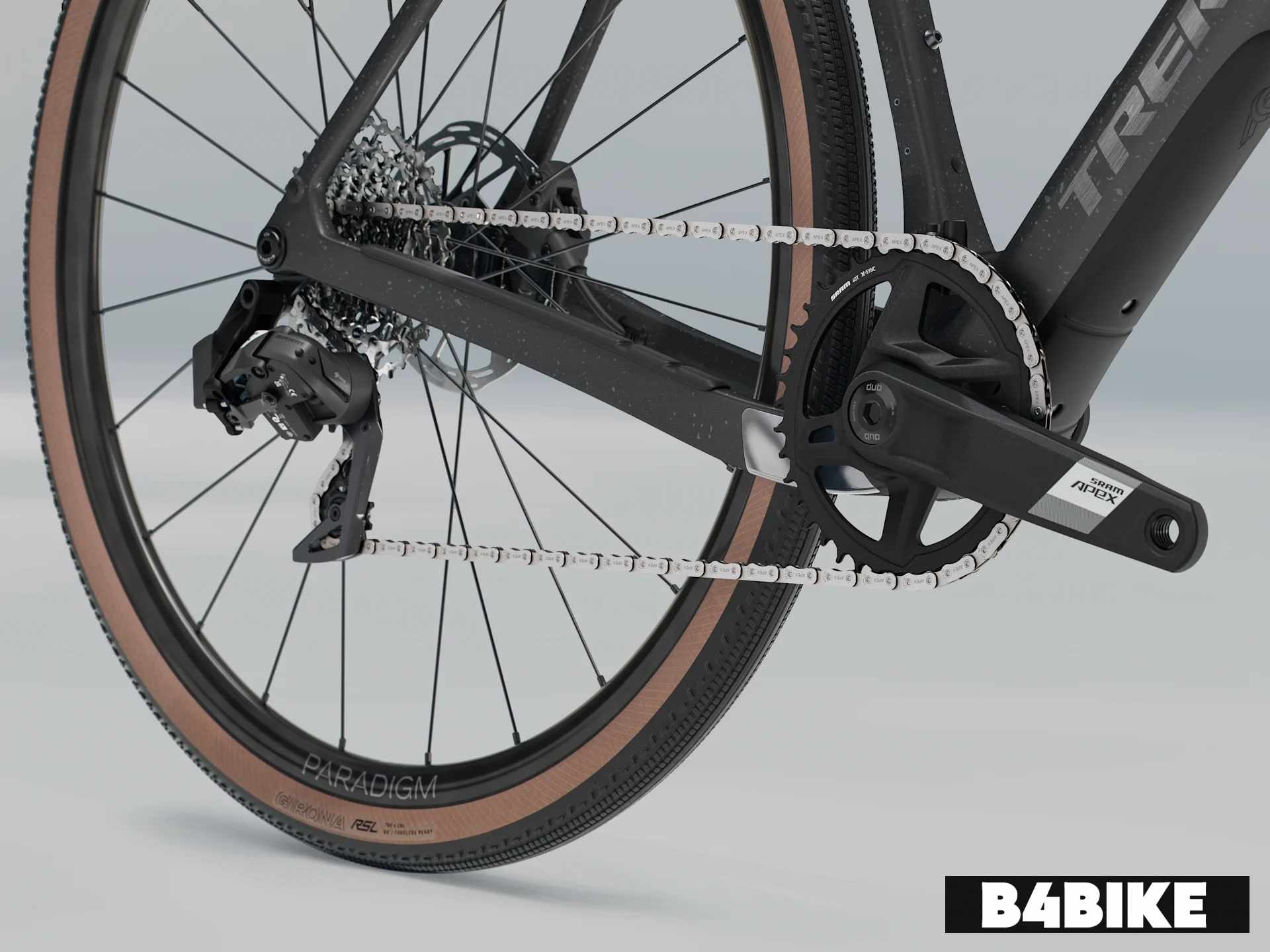

| Crankset | SRAM Apex 1, 40T, DUB Wide, 165mm length(Size: XS, S) SRAM Apex 1, 40T, DUB Wide, 170mm length(Size: M) SRAM Apex 1, 40T, DUB Wide, 172.5mm length(Size: ML, L) SRAM Apex 1, 40T, DUB Wide, 175mm length(Size: XL) |
| Chain | SRAM Apex, 12 speed |
| Shifters | SRAM Apex, 12 speed(Size: XS, S, M, ML, L, XL) SRAM Apex AXS, 12 speed(Size: XS, S, M, ML, L, XL) |
| Saddle | Verse Short Comp, steel rails, 155mm width(Size: XS, S) Verse Short Comp, steel rails, 145mm width(Size: M, ML, L, XL) |
| Cassette | SRAM XPLR PG-1231, 11-44, 12 speed |
| Chainrings | Max chainring size: 1x:44 2x: 46/30 |
| Bottom Bracket | SRAM DUB, T47 threaded, internal bearing |
| Electricals | |
|---|---|
| Battery | SRAM eTap battery pack (with charger) |
| Brakes | |
|---|---|
| Front Brake | SRAM Paceline, rounded, centerlock, 160mm Disc |
| Rear Brake | SRAM Paceline, rounded, centerlock, 160mm Disc |
| Chassis and Suspension | |
|---|---|

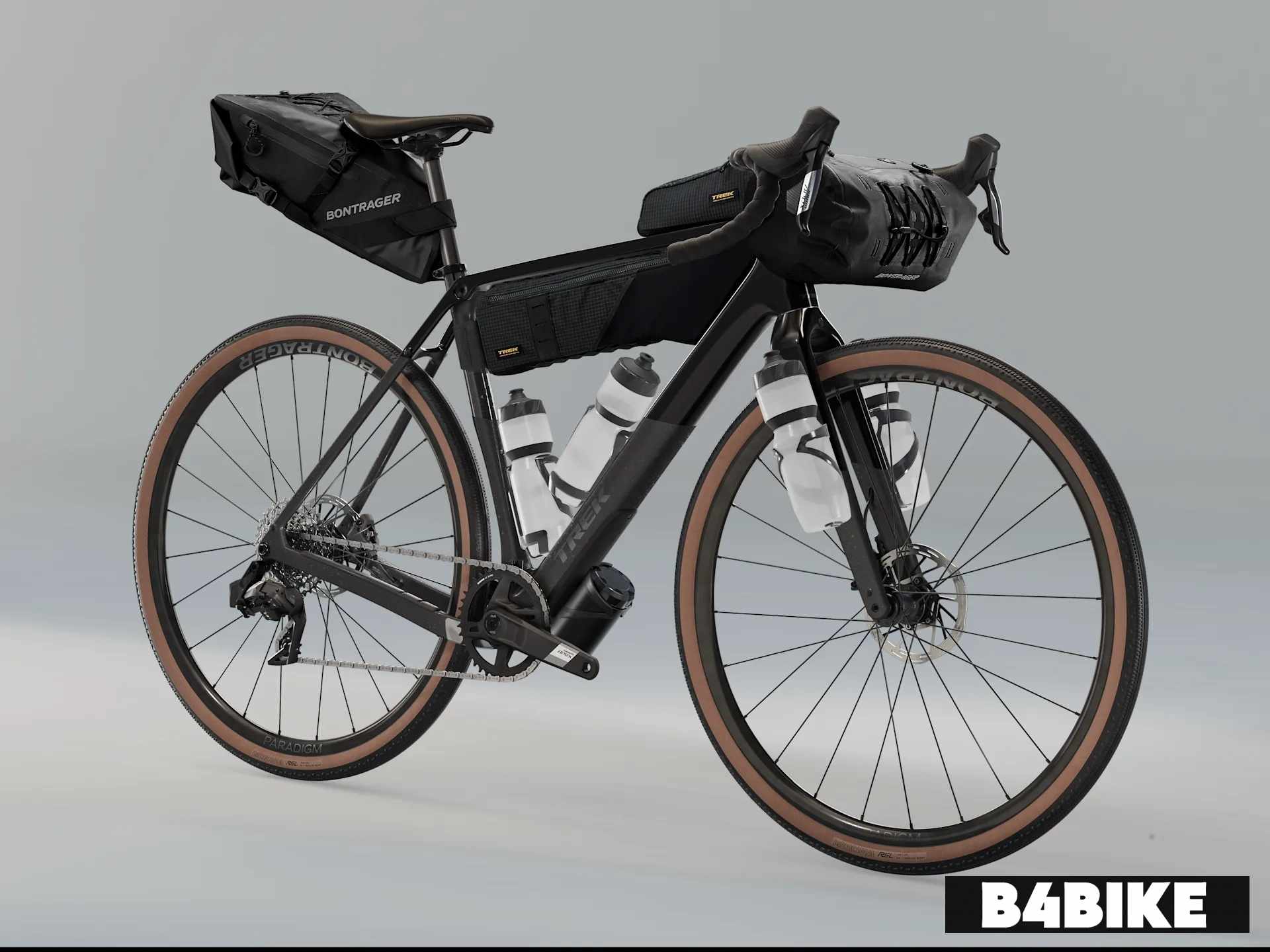

| Frame | 500 Series OCLV Carbon, IsoSpeed, downtube storage door, hidden fender mounts, rack mounts, integrated frame bag mounts, invisible cable routing, T47, flat mount disc, integrated chainkeeper, removable FD hanger, UDH, 142x12mm chamfered thru axle |
| Tyres | |
|---|---|
| Wheels / Rim | Wheel front: Bontrager Paradigm SL TLR rim with CL-712 100x12mm Centerlock Disc hub, 24H, Black spokes and nipples Wheel rear: Bontrager Paradigm SL TLR rim with CL-712 142x12mm Centerlock Disc hub, 24H, Black spokes and nipples |
| Front Tyre | Bontrager Girona RSL, Tubeless Ready, GR puncture protection, aramid bead, 220 tpi, 700x42mm |
| Rear Tyre | Bontrager Girona RSL, Tubeless Ready, GR puncture protection, aramid bead, 220 tpi, 700x42mm |
| Dimensions | |
|---|---|
| Weight | 9.50 kg |
| Additional Details |
|---|
| Skewer: Bontrager Switch chamfered thru axle, removable lever |
