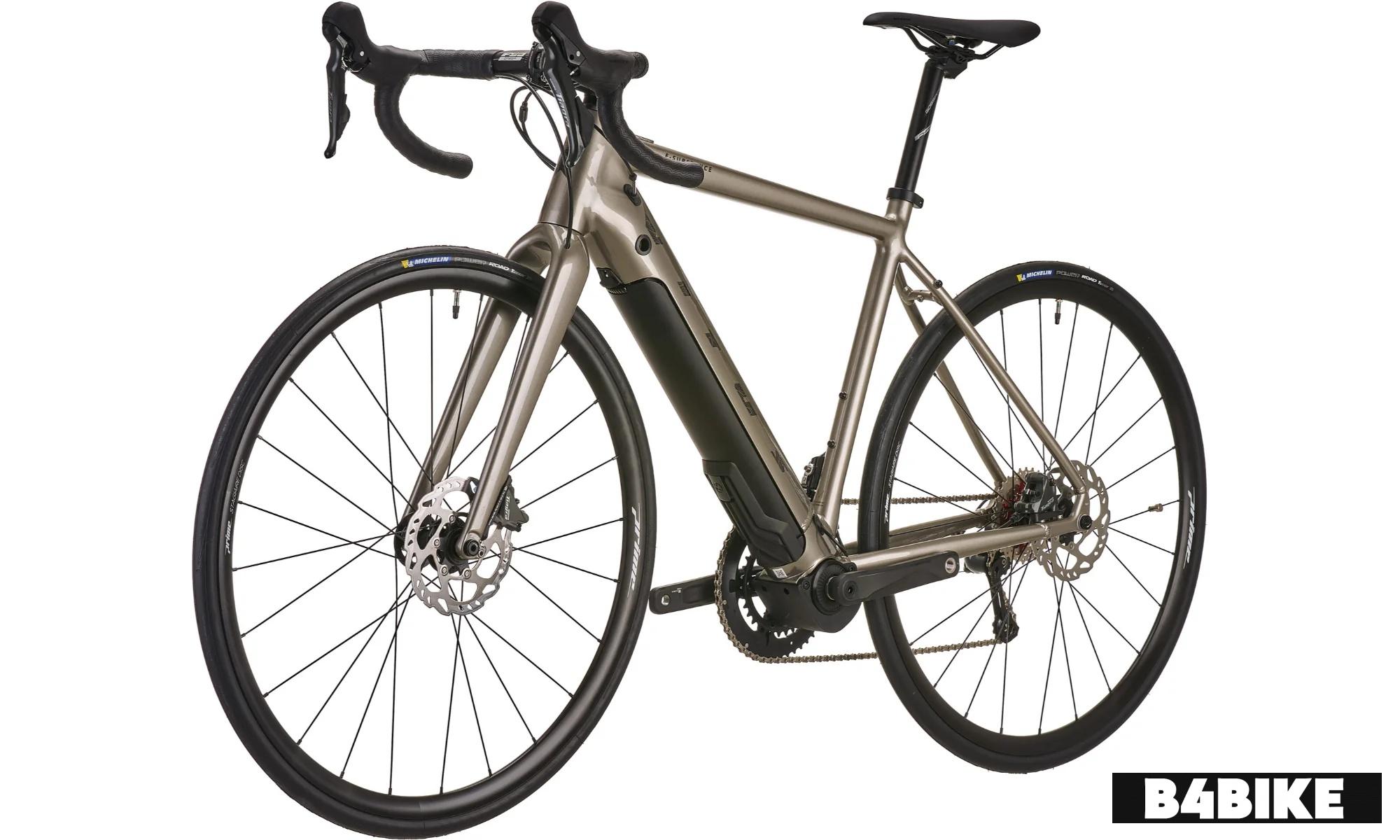

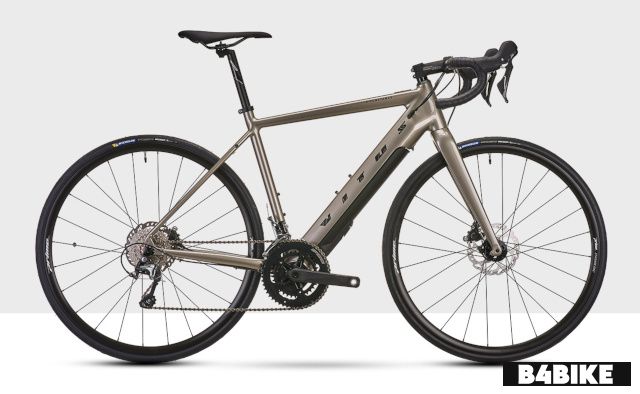

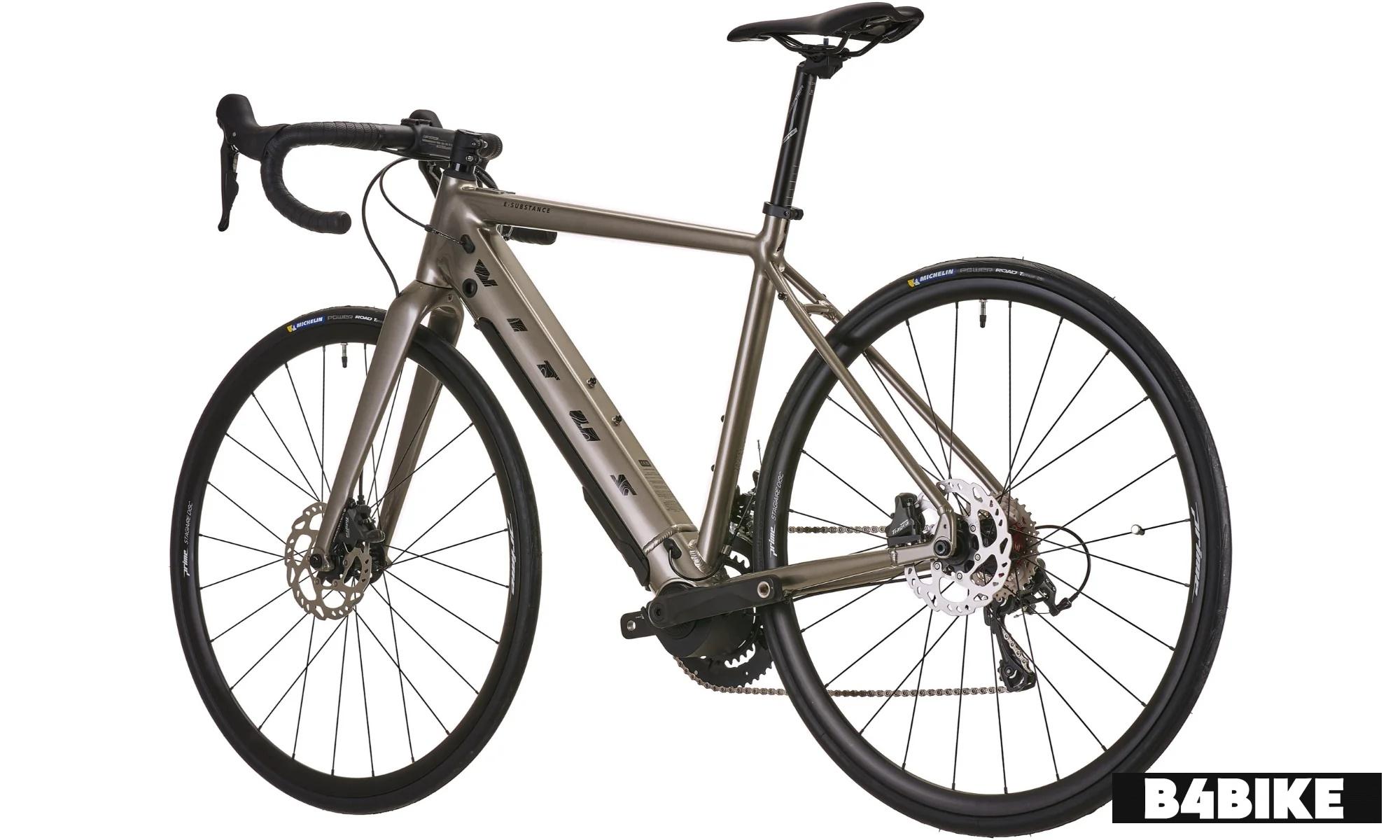

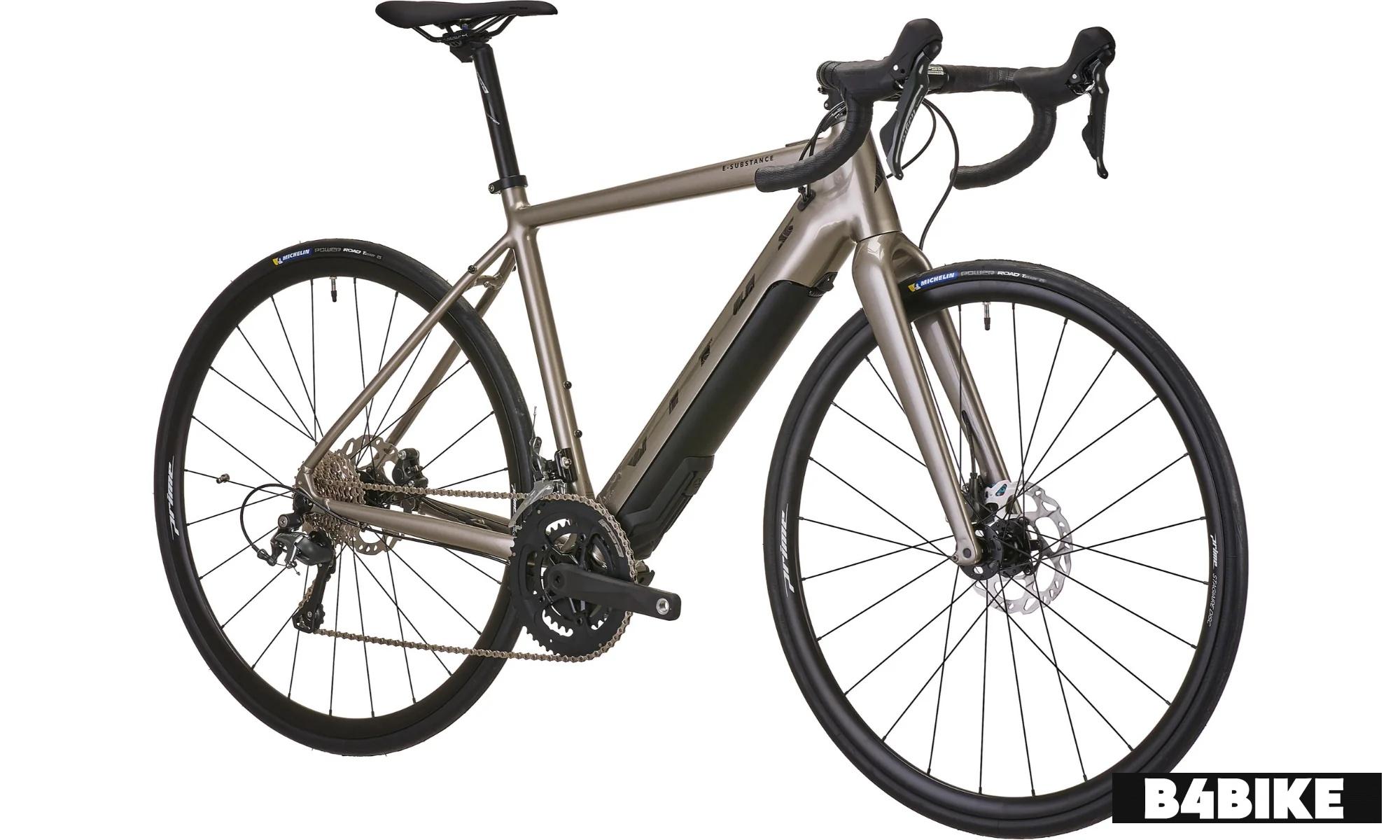

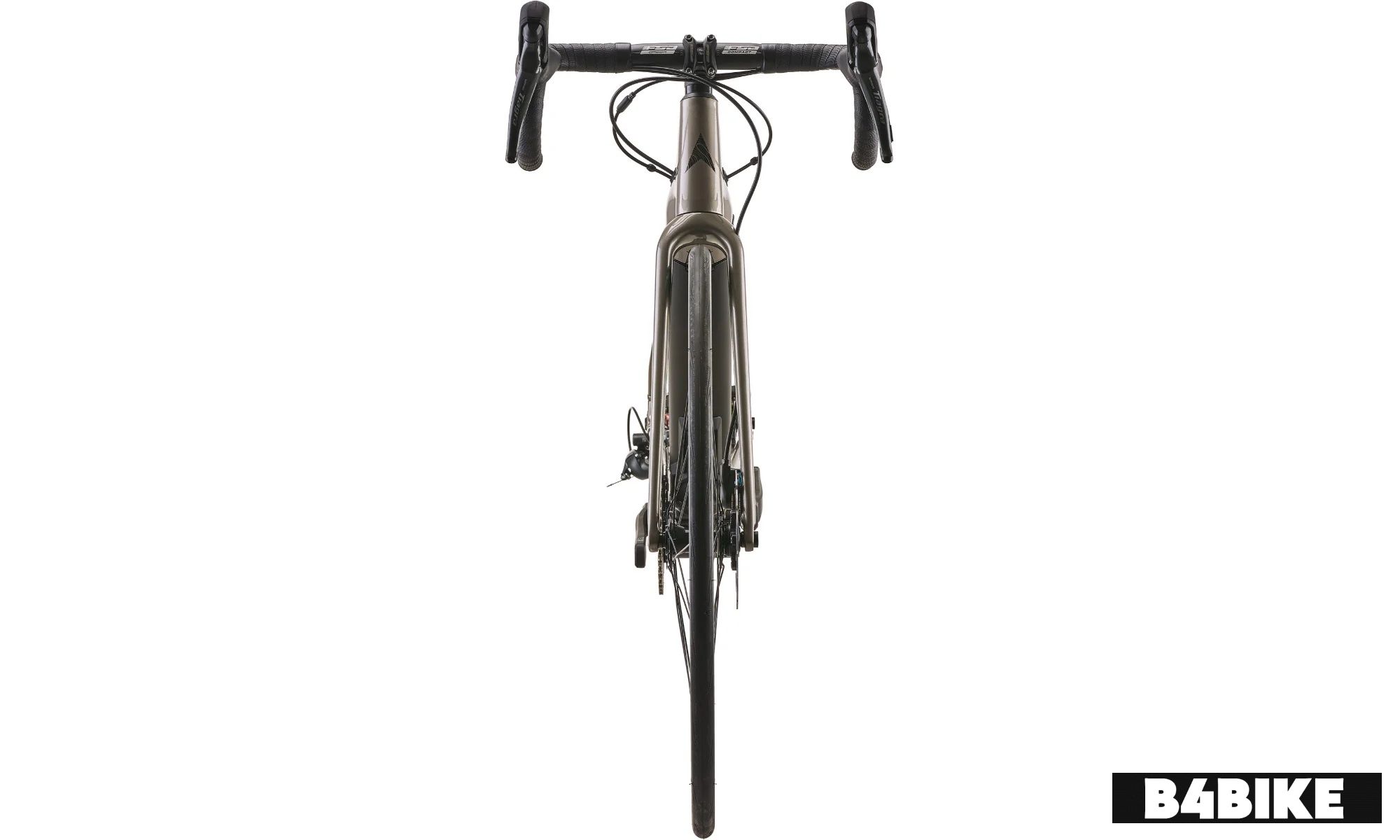

Vitus E-Substance Aluminium Fazua Electric Road Bike: Specs, Price, colors & Features

The Vitus E-Substance Aluminium Fazua Electric Road Bike runs on a Shimano Tiagra 2 x 10 speed groupset, supporting smooth gear shifts across varied terrains. The Fazua drive system provides three assistance levels, reaching up to 25 km/h, powered by a 250W mid-drive motor delivering a 55 Nm torque. A 252 Wh battery fuels this setup, balancing power and endurance for extended rides.

Rate Vitus E-Substance Aluminium Fazua:

3.9/5 (7 votes)

Write a Review

Vitus E-Substance Aluminium Fazua Price $ 4288 [United States]

The price could differ based on factors such as color, accessories and other features.

Country, City	Price
United States	$ 4288

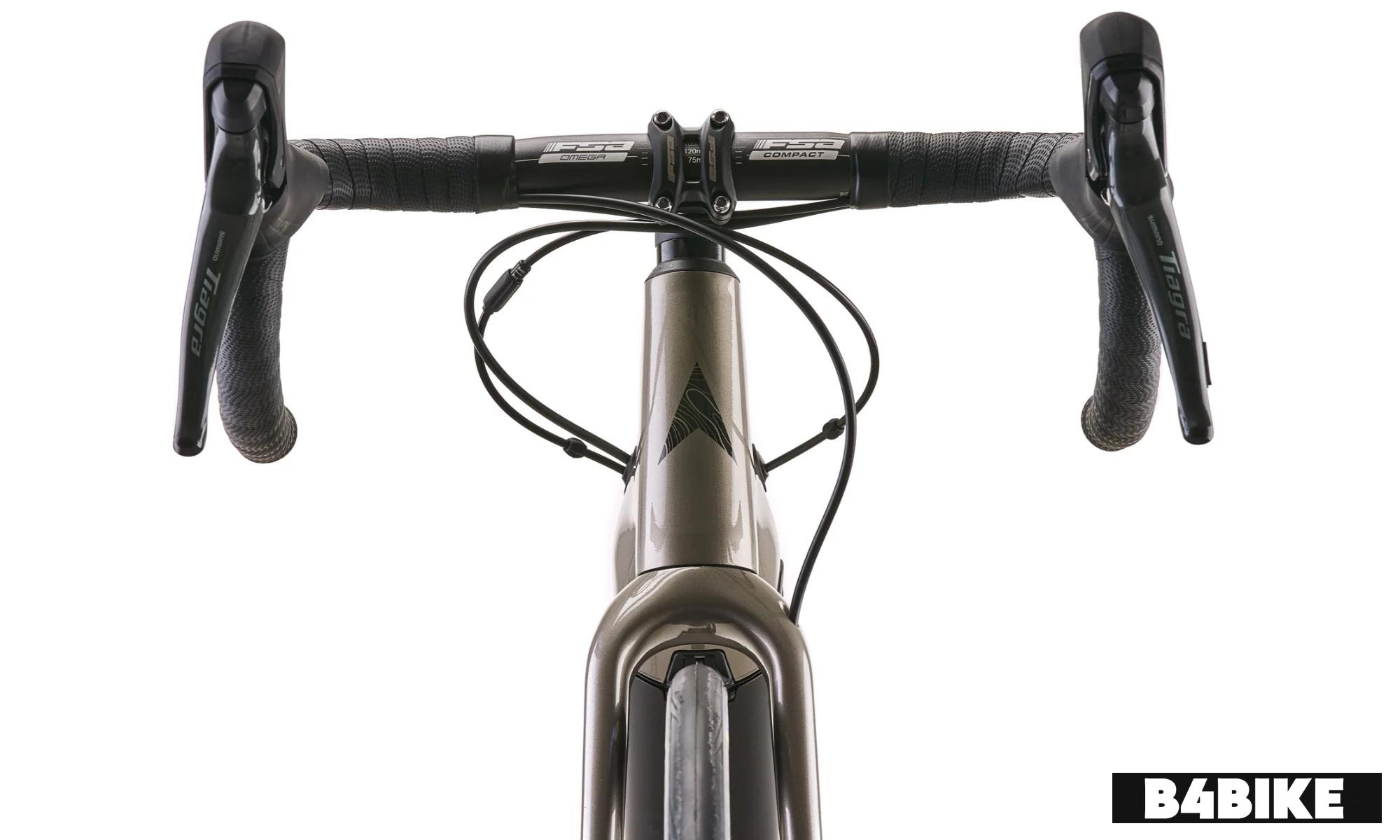

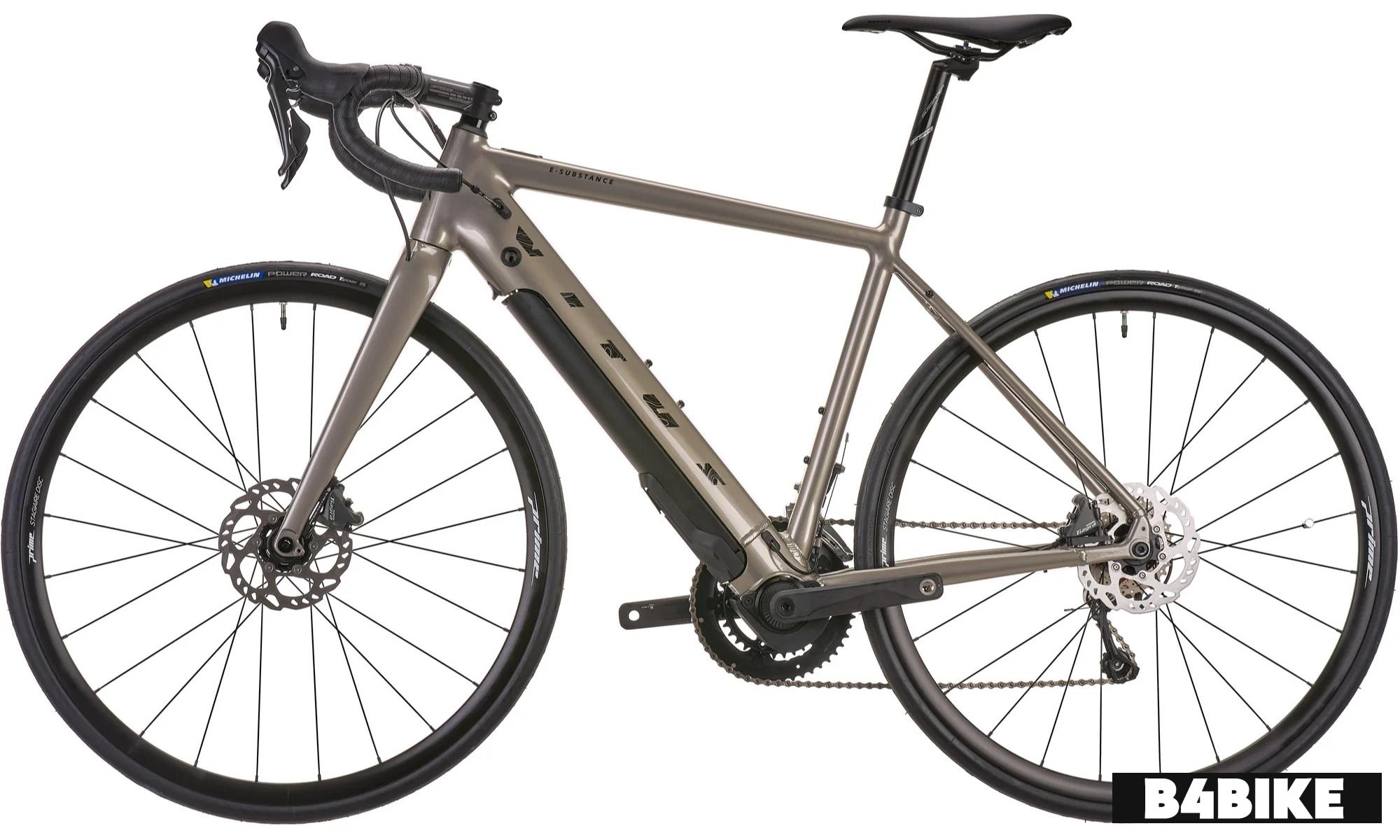

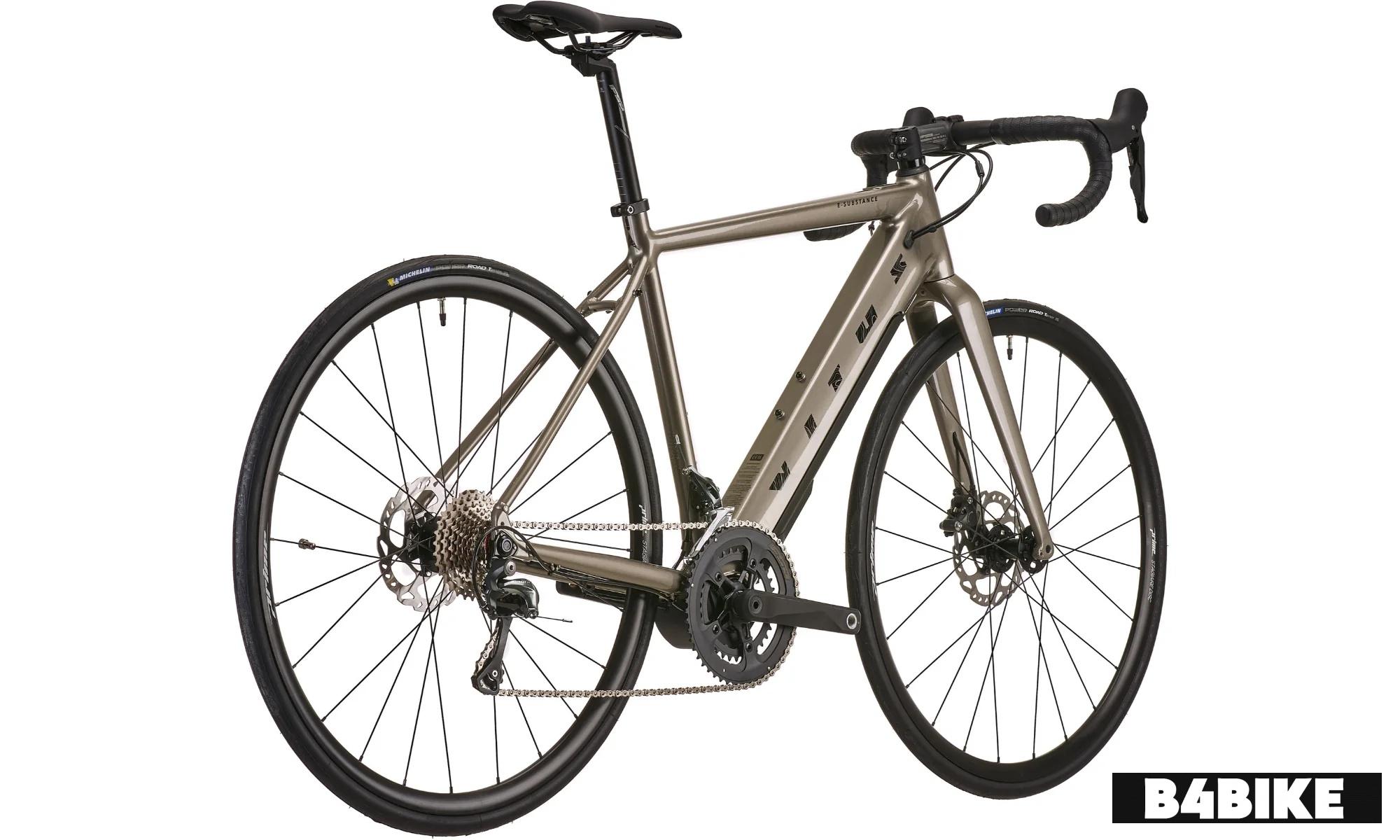

Images

View More Pictures

Colours

Champagne

Specifications

Vehicle Type	Road Bike
Fuel	Electric
Maximum Torque	55 Nm
Top Speed	25 kmph
Stem	FSA Omega 6061 Aluminium 3D Forged, Bar Bore: 31.8mm, +/- 6 degrees, S:80mm M:90mm L:100mm XL:110mm

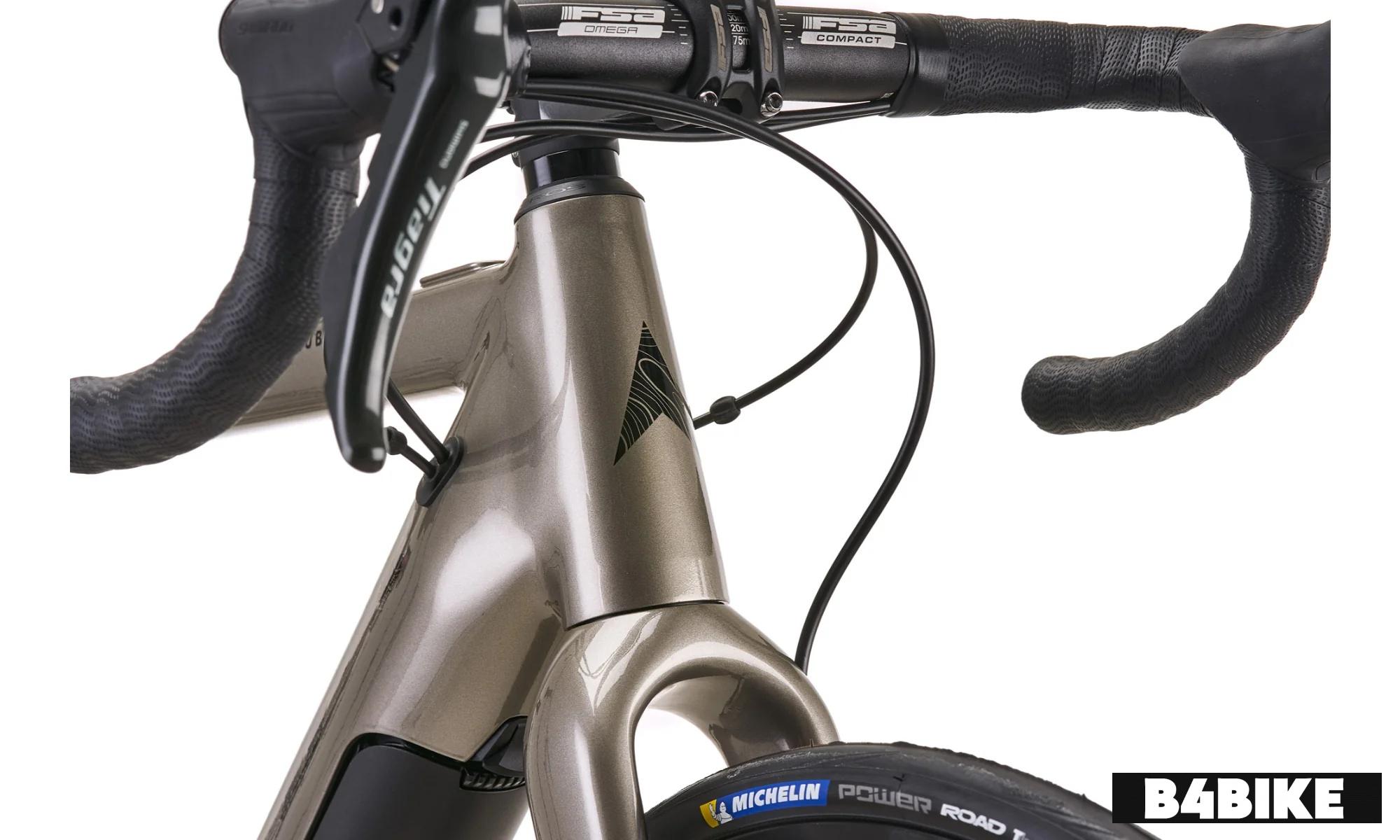

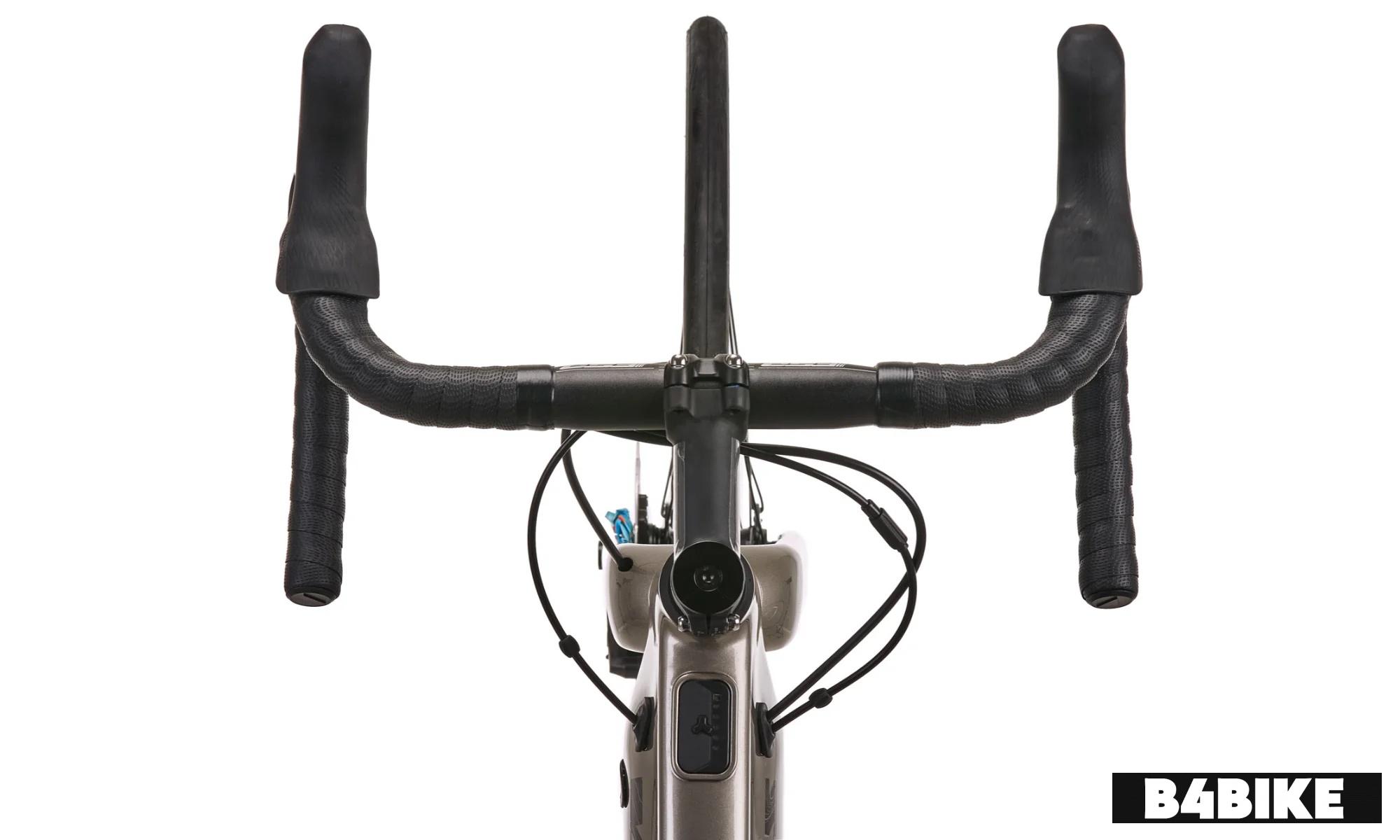

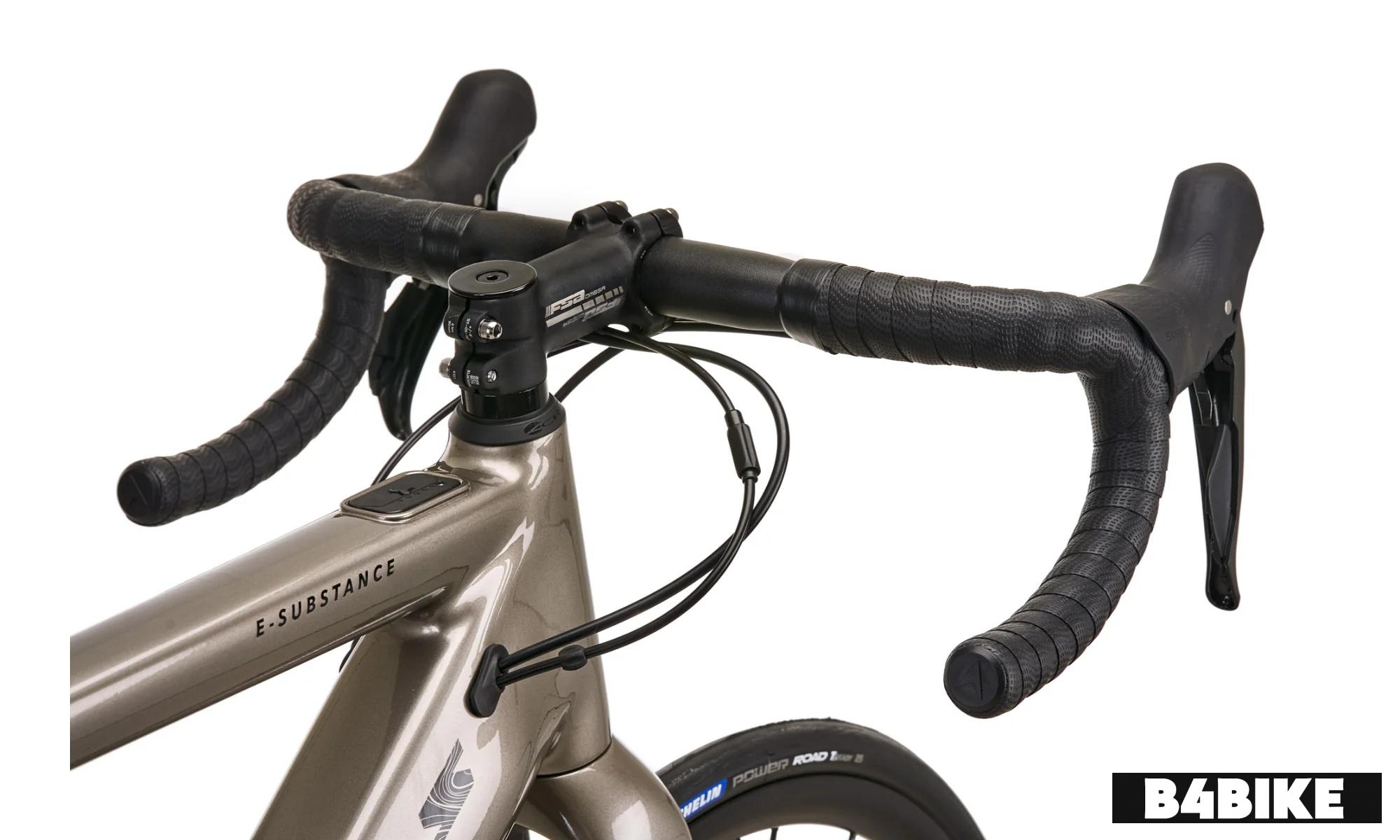

Handlebar	FSA Omega Compact Handlebars 6061 Aluminium, 74mm Reach, 118mm Drop, 4 Degree Flare, S:400mm M:400mm L:420mm XL:440mm
Fork	UD Carbon, Tapered Steerer, 100 x 12mm Axle, Flat Mount, Mud Guard Mounts
Seat	Seat clamp: Aluminium 31.8mm, Stainless Steel Bolt
Seatpost	FSA Gossamer Aluminium, 27.2mm x 350mm
Grip	Vitus EVA Cork
Crankset	FSA CK 746 50/34T, 2 x 10 Speed, S:170mm M:172.5mm L:172.5mm XL:175mm
Chain	KMC e10T 10 Speed, E-Bike Specific
Shifters	Shimano Tiagra R4700 ST-4720-R, 10 Speed
Saddle	Vitus Steel Rail
Headset	ACROS Aix-Low R3 Sealed Bearings, OD48, 1 1/8” – 1 ½”, 41.8 / 28.6 – 52 / 40
Derailleur : Front	Shimano Tiagra R4700 FD-R4700, Braze-On, 2 x 10 Speed
Derailleur : Rear	Shimano Tiagra R4700 RD-R4700, 10 Speed
Hub : Front	12x100mm, Centre Lock
Hub : Rear	142x12mm, Centre Lock, HG Freehub
Cassette	Sunrace CS-RX0, 10 Speed, 11-32T

Motor Details
Fazua Ride 50 Trail 250W, Mid Position Motor

Charging Time
2hr

Electricals
Battery	Fazua Energy 250X Frame Integrated, 252Wh - 36v / 7ah

Brakes
Front Brake	Shimano Tiagra R4700 Hydraulic Disc ST-4720-L & BR-4770-R, Flat Mount Rotor: Shimano SM-RT70, 160mm
Rear Brake	Shimano Tiagra R4700 Hydraulic Disc ST-4720-L & BR-4770-R, Flat Mount Rotor: Shimano SM-RT70, 160mm

Chassis and Suspension
Frame	6061-T6 Aluminium, Fazua evation Integration , Internal Cable Routing, Flat Mount, Mud Guard Mounts, Rear Rack Mounts, 142 x 12mm Hub Spacing, Axle Specifications: 160mm Length, 14mm Thread Length, M12xP1.5 Thread Pitch

Tyres
Wheels / Rim	Prime Stagiaire Disc Alloy 650b, Tubeless Ready, 100 x 12mm Front, 142 x 12mm Rear, Centre Lock, HG Freehub
Front Tyre	Michelin Power Road TLR 700c x 25c, Tubeless Ready
Rear Tyre	Michelin Power Road TLR 700c x 25c, Tubeless Ready

Dimensions
Weight	15.4 kg

Vitus E-Substance Aluminium Fazua Electric Road Bike

Detailed information on the Vitus E-Substance Aluminium Fazua
