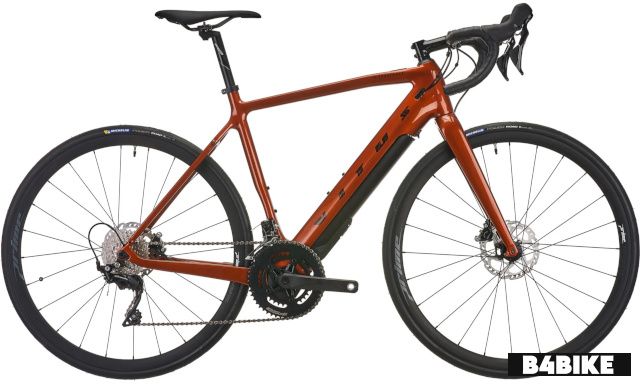

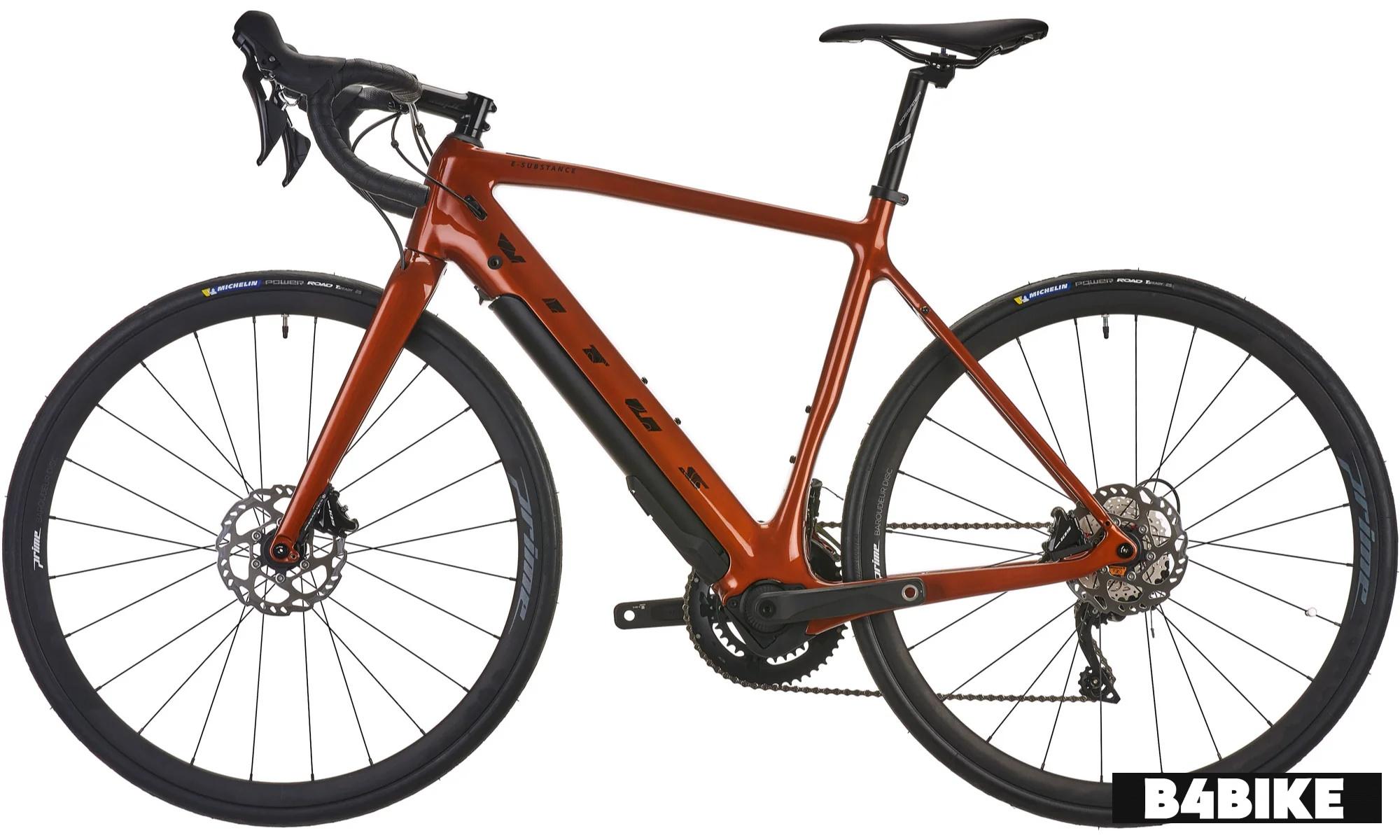

Vitus E-Substance Carbon Fazua Electric Road Bike: Specs, Price, colors & Features

The Vitus E-Substance Carbon Fazua Electric Road Bike is designed around a lightweight UD carbon frame and fork, paired with internal cable routing for a clean look. The Fazua electric drive system provides three assistance levels, delivering up to 250 watts of power when needed. Shimano’s 105 2X drivetrain ensures smooth shifting performance, making it a solid choice for road and off-road adventures.

Rate Vitus E-Substance Carbon Fazua:

4.0/5 (3 votes)

Write a Review

Vitus E-Substance Carbon Fazua Price $ 5077 [United States]

The price could differ based on factors such as color, accessories and other features.

Country, City	Price
United States	$ 5077

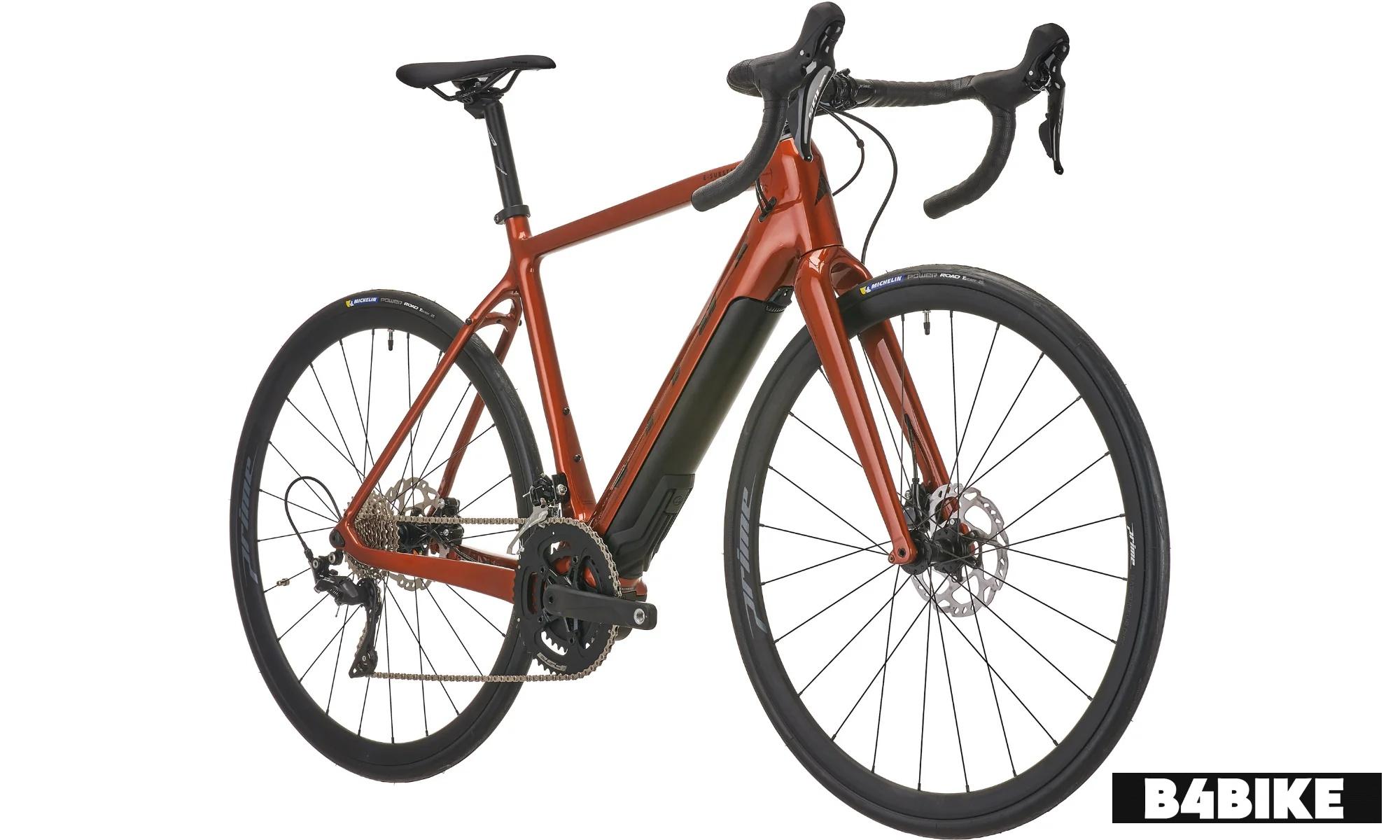

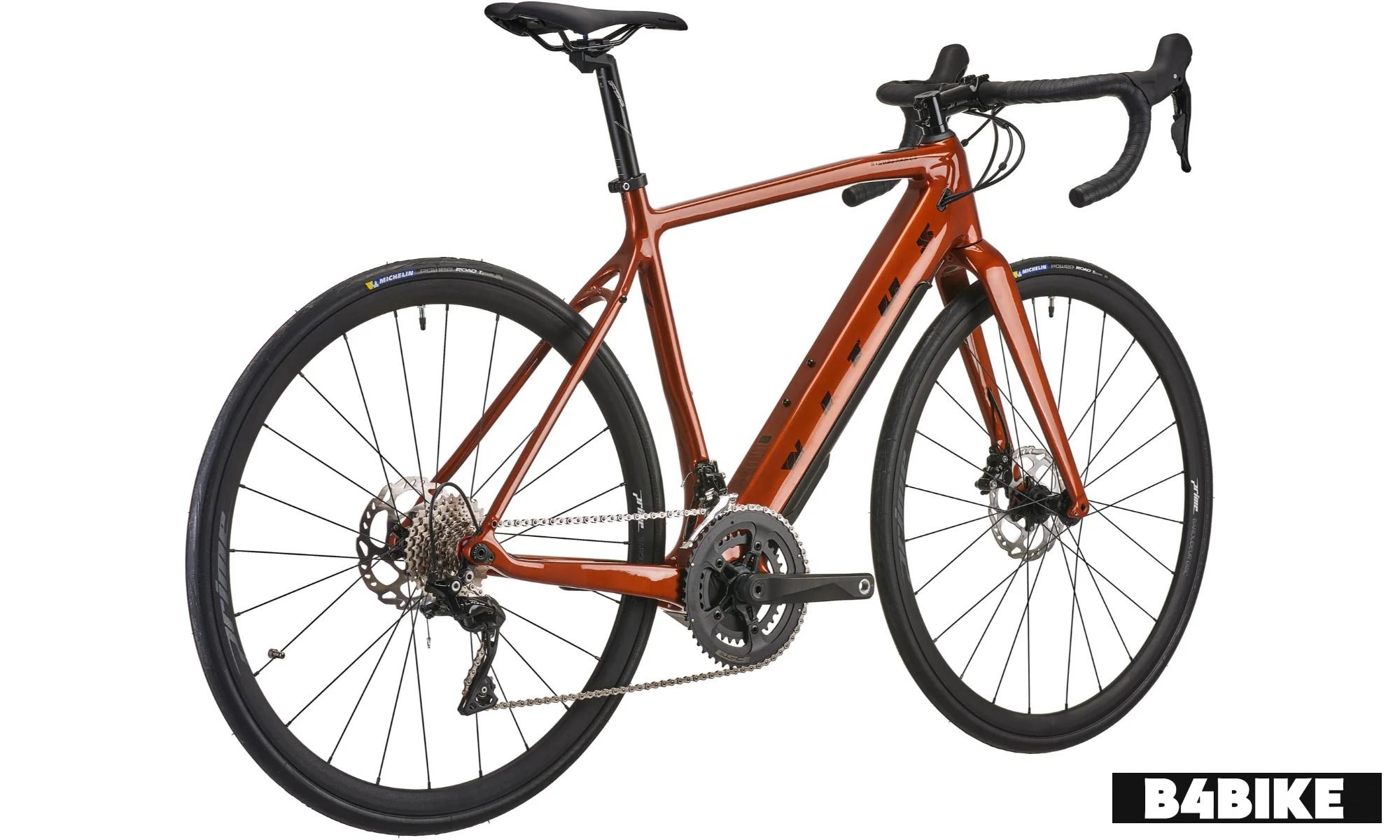

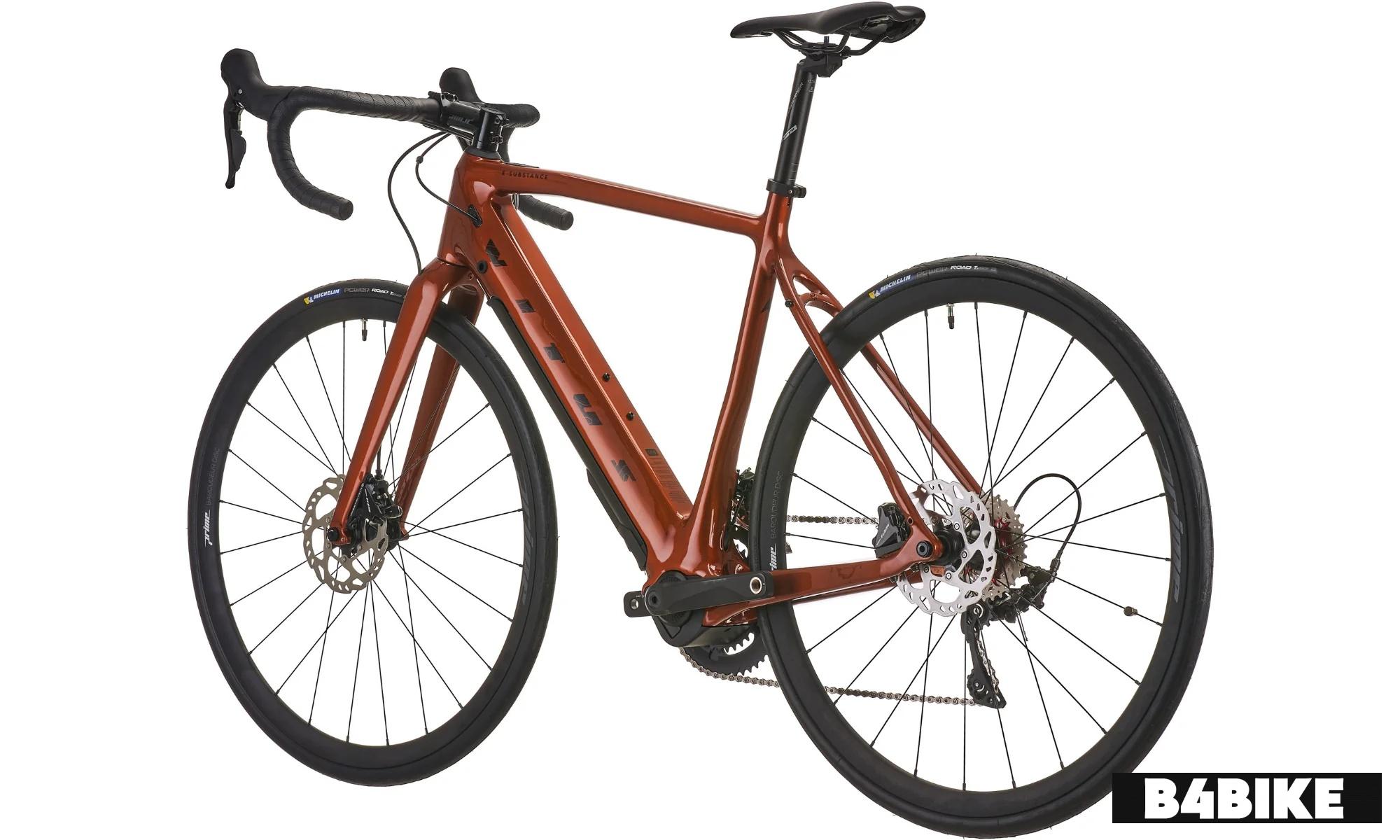

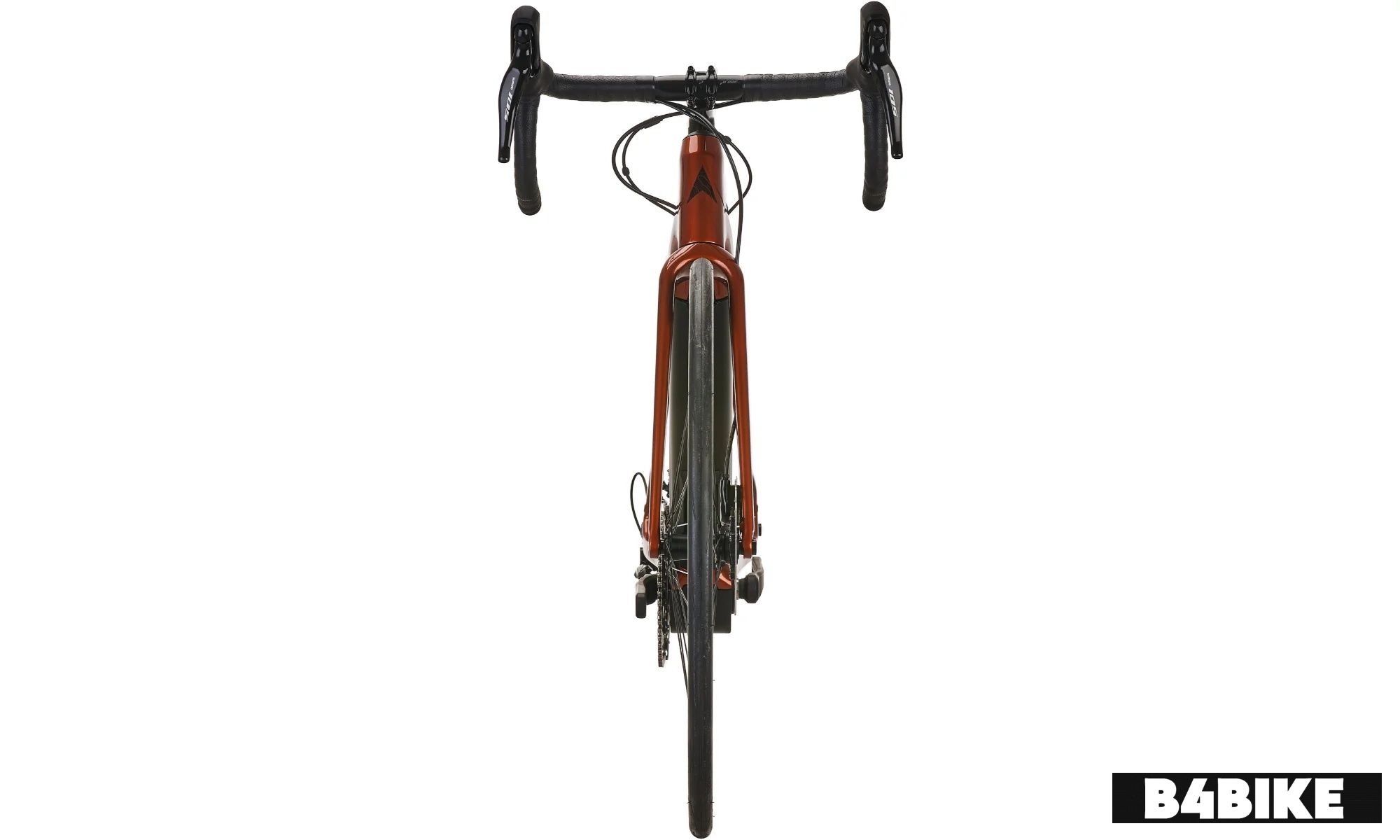

Images

View More Pictures

Colours

Copper

Specifications

Vehicle Type	Road Bike
Fuel	Electric
Maximum Torque	55 Nm
Drivetrain	Shimano 105 2X
Top Speed	25 kmph
Stem	Prime Doyenne Lightweight Aluminium Bar Bore 31.8mm, +/- 5 degrees, S:80mm M:90mm L:100mm XL:110mm

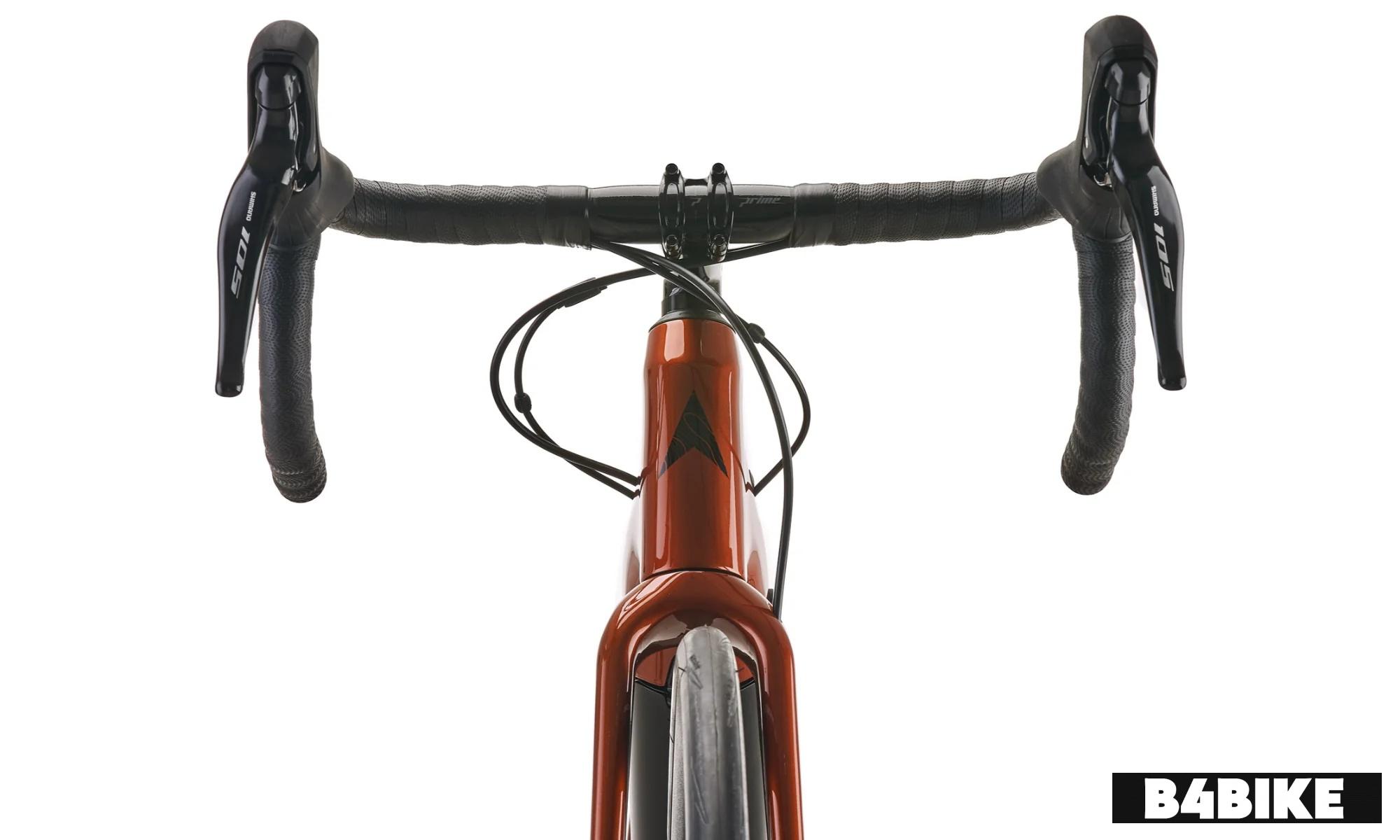

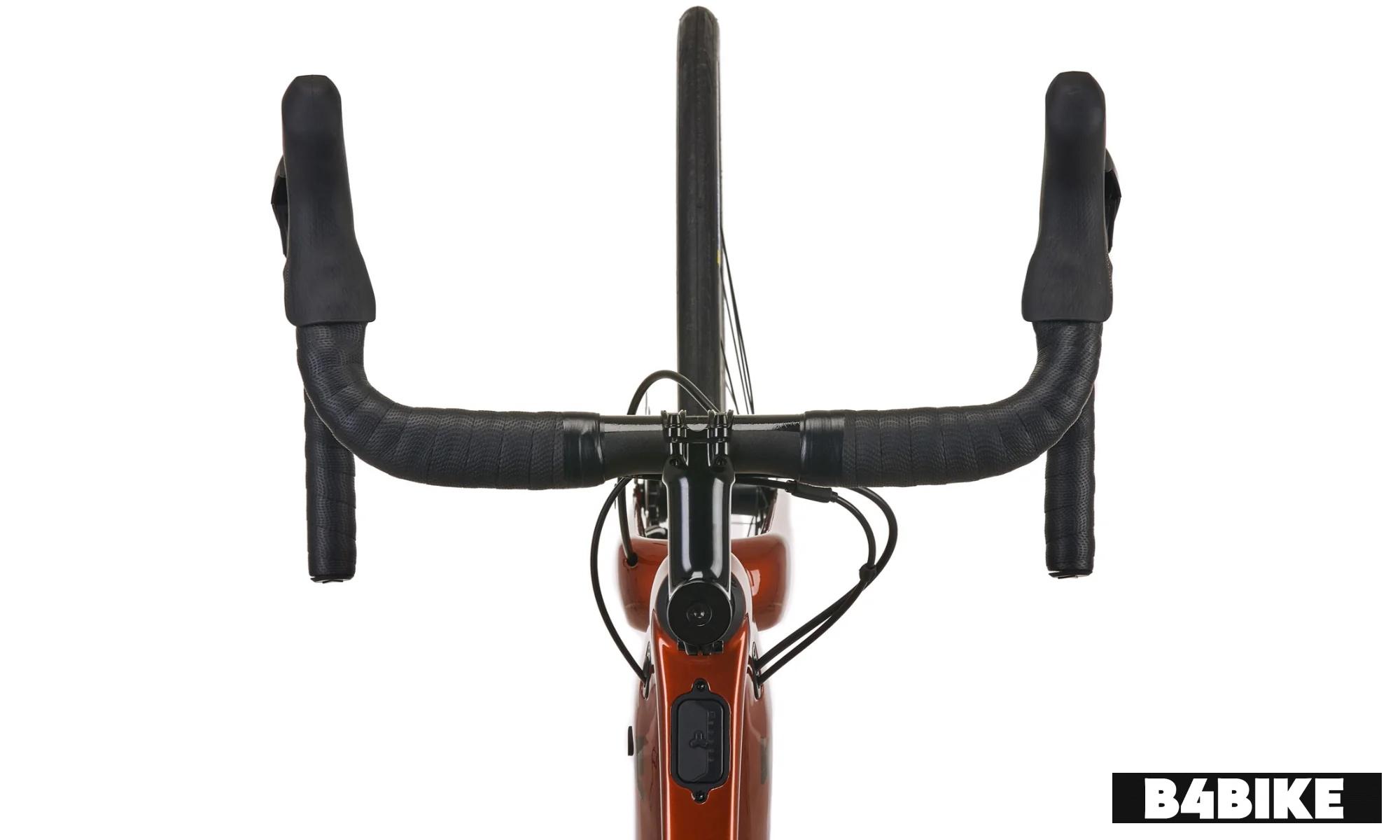

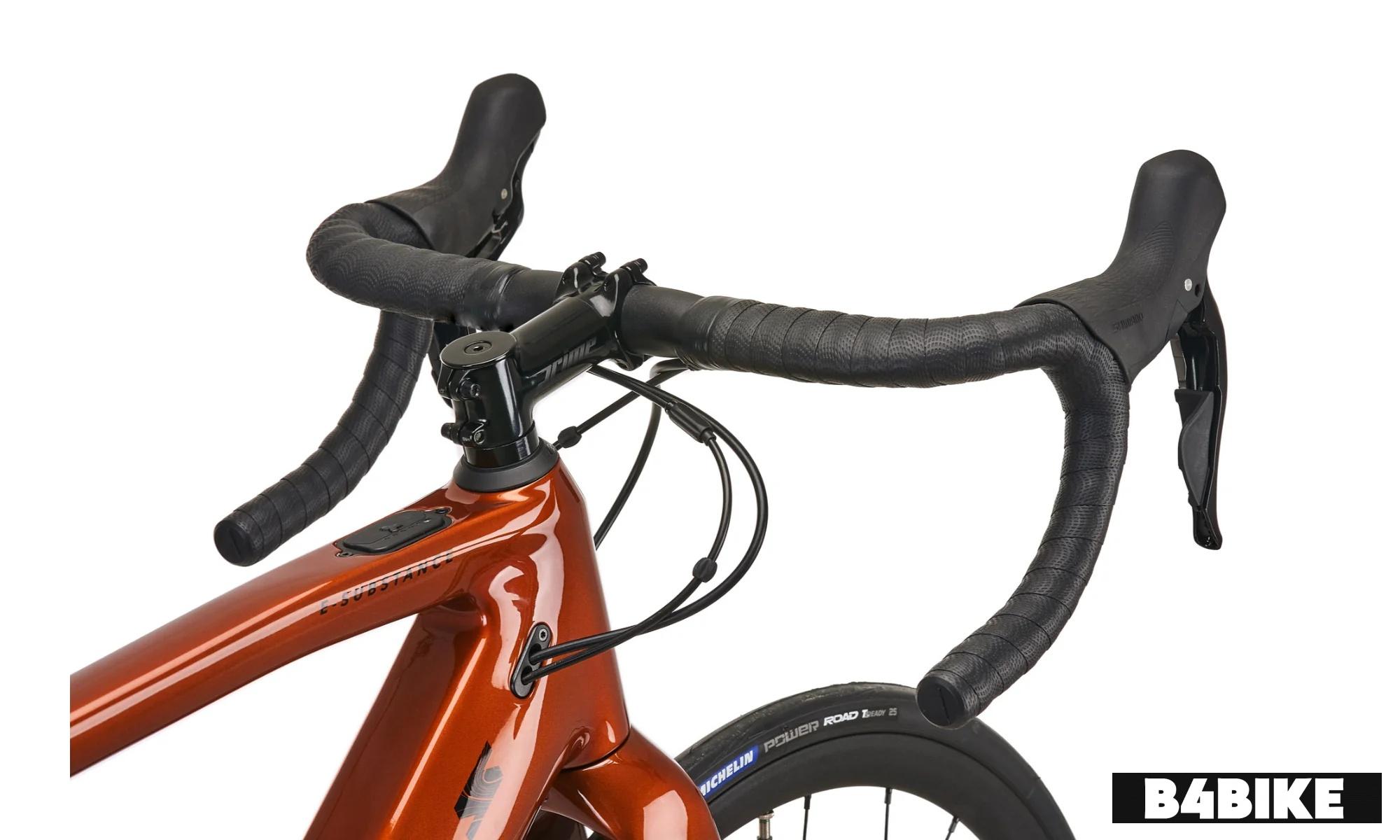

Handlebar	Prime Doyenne Aluminium 6061 Aluminium, 70mm Reach, 125mm Drop, S:400mm M:400mm L:420mm XL:440mm
Fork	UD Carbon, Tapered Steerer, 100 x 12mm Axle, Flat Mount, Mud Guard Mounts
Seat	Seat clamp: Aluminium 31.8mm Stainless Steel Bolt
Seatpost	FSA Gossamer Aluminium, 27.2mm x 350mm
Grip	Vitus Super Grip Anti Slip, Shockproof
Crankset	FSA CK 746 50/34T, 2 x 10 Speed, S:170mm M:172.5mm L:172.5mm XL:175mm
Chain	KMC e11T 11 Speed, E-Bike Specific
Shifters	Shimano 105 R7000 ST-7025-R, 11 Speed
Saddle	Steel Rail
Headset	ACROS Aix-Low R3 Sealed Bearings, OD48, 1 1/8” – 1 ½”, 41.8 / 28.6 – 52 / 40
Derailleur : Front	Shimano 105 R7000, FD-R7000-L, Braze-On, 2 x 11 Speed
Derailleur : Rear	Shimano 105 R7000, RD-R7000, 11 Speed
Hub : Front	Prime RD020 12x100mm, Centre Lock
Hub : Rear	Prime RD020 142x12mm, Centre Lock, HG Freehub
Cassette	Sunrace CS-RX1, 11 Speed, 11-32T

Motor Details
Fazua Ride 50 Trail 250W, Mid Position Motor

Charging Time
2hr

Electricals
Battery	Fazua Energy 250X Frame Integrated, 252Wh - 36v / 7ah

Brakes
Front Brake	Shimano 105 R7000 Hydraulic Disc ST-7025-L & BR-7070-R, Flat Mount Rotor: Shimano SM-RT70, 160mm
Rear Brake	Shimano 105 R7000 Hydraulic Disc ST-7025-L & BR-7070-R, Flat Mount Rotor: Shimano SM-RT70, 160mm

Chassis and Suspension

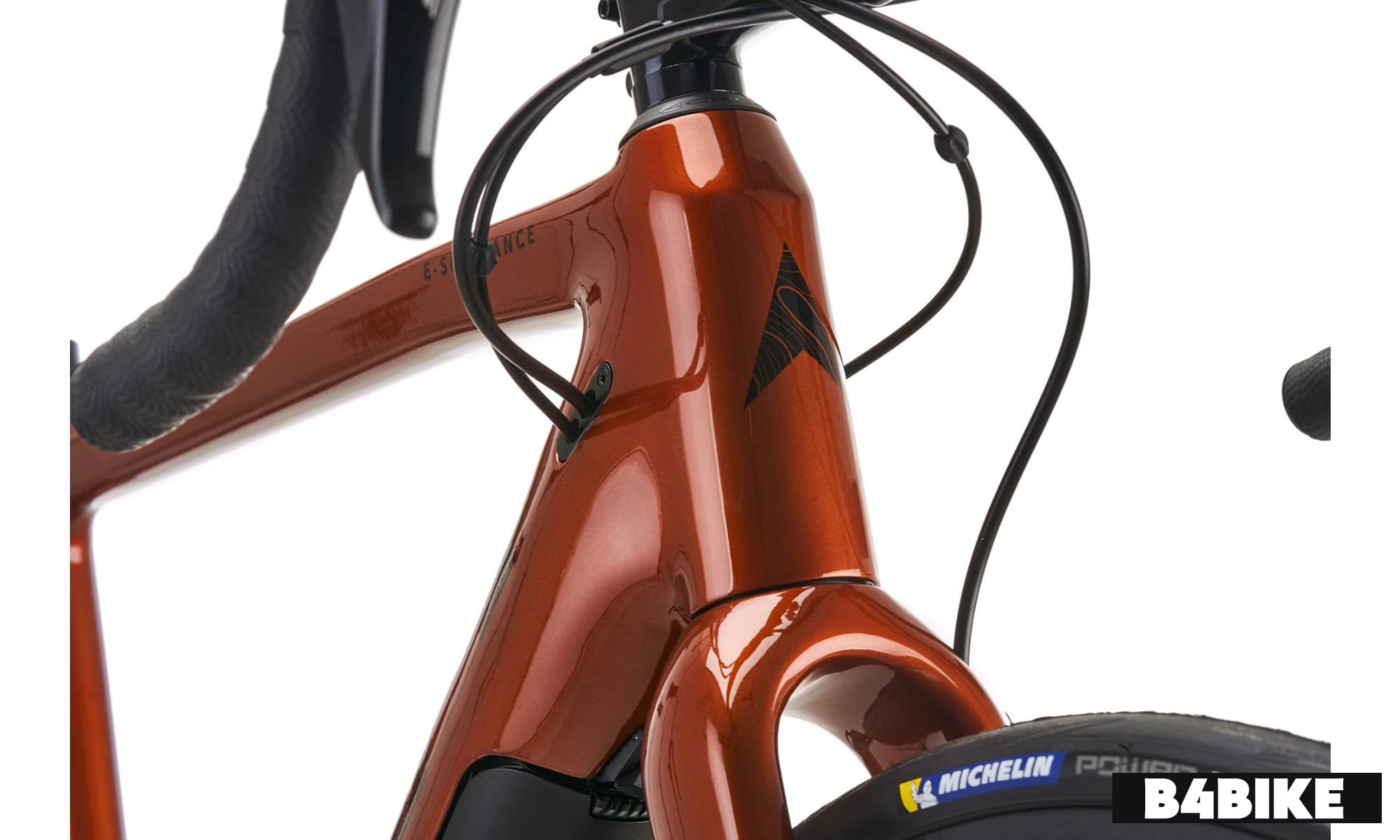

Frame	UD Carbon, Fazua evation Integration, Mudguard Mounts, Rack Mounts, 12mm x 142mm axle, Flat Mount

Tyres
Wheels / Rim	Prime Baroudeur Disc Alloy, 700c, Tubeless Ready Rim Prime Baroudeur Disc Alloy Wheels, 700c, Tubeless Ready, 100 x 12mm Front, 142 x 12mm Rear, Centre Lock, HG Freehub
Front Tyre	Michelin Power Road TLR, 700c x 25c, Tubeless Ready
Rear Tyre	Michelin Power Road TLR, 700c x 25c, Tubeless Ready

Dimensions
Weight	13.7 kg
